Mongo入门 - 基本使用：索引和聚合
约 2017 字大约 7 分钟
Mongo入门 - 基本使用：索引和聚合
在了解MongoDB的基本CRUD操作后，常用的其它操作还有对字段的索引以及对字段的聚合操作。@pdai
聚合 - Aggregation Pipline
类似于将SQL中的group by + order by + left join ... 等操作管道化。
常规使用

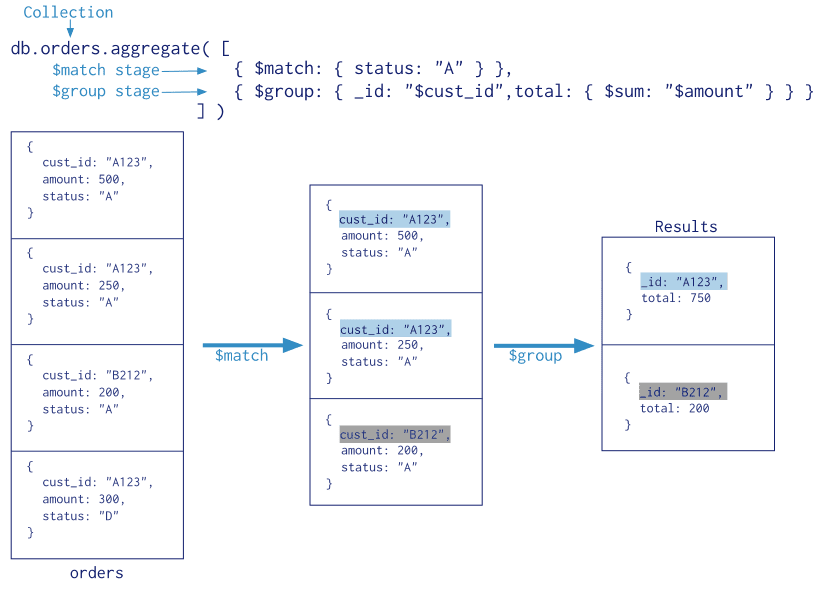

- 图例理解
- 准备数据
> db.orders.insertMany( [
... { _id: 1, cust_id: "abc1", ord_date: ISODate("2012-11-02T17:04:11.102Z"), status: "A", amount: 50 },
... { _id: 2, cust_id: "xyz1", ord_date: ISODate("2013-10-01T17:04:11.102Z"), status: "A", amount: 100 },
... { _id: 3, cust_id: "xyz1", ord_date: ISODate("2013-10-12T17:04:11.102Z"), status: "D", amount: 25 },
... { _id: 4, cust_id: "xyz1", ord_date: ISODate("2013-10-11T17:04:11.102Z"), status: "D", amount: 125 },
... { _id: 5, cust_id: "abc1", ord_date: ISODate("2013-11-12T17:04:11.102Z"), status: "A", amount: 25 }
... ] );
{ "acknowledged" : true, "insertedIds" : [ 1, 2, 3, 4, 5 ] }
> db.orders.find({})
{ "_id" : 1, "cust_id" : "abc1", "ord_date" : ISODate("2012-11-02T17:04:11.102Z"), "status" : "A", "amount" : 50 }
{ "_id" : 2, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-01T17:04:11.102Z"), "status" : "A", "amount" : 100 }
{ "_id" : 3, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-12T17:04:11.102Z"), "status" : "D", "amount" : 25 }
{ "_id" : 4, "cust_id" : "xyz1", "ord_date" : ISODate("2013-10-11T17:04:11.102Z"), "status" : "D", "amount" : 125 }
{ "_id" : 5, "cust_id" : "abc1", "ord_date" : ISODate("2013-11-12T17:04:11.102Z"), "status" : "A", "amount" : 25 }
>
- 聚合操作
> db.orders.aggregate([
... { $match: { status: "A" } },
... { $group: { _id: "$cust_id", total: { $sum: "$amount" } } },
... { $sort: { total: -1 } }
... ])
{ "_id" : "xyz1", "total" : 100 }
{ "_id" : "abc1", "total" : 75 }
官网还有两个例子：
Pipline操作
MongoDB的聚合管道（Pipline）将MongoDB文档在一个阶段（Stage）处理完毕后将结果传递给下一个阶段（Stage）处理。阶段（Stage）操作是可以重复的。
表达式：处理输入文档并输出。表达式是无状态的，只能用于计算当前聚合管道的文档，不能处理其它的文档。
这里我们介绍一下聚合框架中常用的几个Stages：
$project：修改输入文档的结构。可以用来重命名、增加或删除域，也可以用于创建计算结果以及嵌套文档。$match：用于过滤数据，只输出符合条件的文档。$match使用MongoDB的标准查询操作。$limit：用来限制MongoDB聚合管道返回的文档数。$skip：在聚合管道中跳过指定数量的文档，并返回余下的文档。$unwind：将文档中的某一个数组类型字段拆分成多条，每条包含数组中的一个值。$group：将集合中的文档分组，可用于统计结果。$sort：将输入文档排序后输出。$geoNear：输出接近某一地理位置的有序文档。$bucket: 分组（分桶）计算。$facet: 多次分组计算。$out: 将结果集输出，必须是Pipline最后一个Stage。
举几个例子
- $project
> db.orders.aggregate(
... { $project : {
... _id : 0 , // 默认不显示_id
... cust_id : 1 ,
... status : 1
... }});
{ "cust_id" : "abc1", "status" : "A" }
{ "cust_id" : "xyz1", "status" : "A" }
{ "cust_id" : "xyz1", "status" : "D" }
{ "cust_id" : "xyz1", "status" : "D" }
{ "cust_id" : "abc1", "status" : "A" }
>
- $skip
db.orders.aggregate(
... { $skip : 4 });
{ "_id" : 5, "cust_id" : "abc1", "ord_date" : ISODate("2013-11-12T17:04:11.102Z"), "status" : "A", "amount" : 25 }
>
- $unwind
> db.inventory2.insertOne({ "_id" : 1, "item" : "ABC1", sizes: [ "S", "M", "L"] })
{ "acknowledged" : true, "insertedId" : 1 }
> db.inventory2.aggregate( [ { $unwind : "$sizes" } ] )
{ "_id" : 1, "item" : "ABC1", "sizes" : "S" }
{ "_id" : 1, "item" : "ABC1", "sizes" : "M" }
{ "_id" : 1, "item" : "ABC1", "sizes" : "L" }
- $bucket
> db.artwork.insertMany([
... { "_id" : 1, "title" : "The Pillars of Society", "artist" : "Grosz", "year" : 1926,
... "price" : NumberDecimal("199.99") },
... { "_id" : 2, "title" : "Melancholy III", "artist" : "Munch", "year" : 1902,
... "price" : NumberDecimal("280.00") },
... { "_id" : 3, "title" : "Dancer", "artist" : "Miro", "year" : 1925,
... "price" : NumberDecimal("76.04") },
... { "_id" : 4, "title" : "The Great Wave off Kanagawa", "artist" : "Hokusai",
... "price" : NumberDecimal("167.30") },
... { "_id" : 5, "title" : "The Persistence of Memory", "artist" : "Dali", "year" : 1931,
... "price" : NumberDecimal("483.00") },
... { "_id" : 6, "title" : "Composition VII", "artist" : "Kandinsky", "year" : 1913,
... "price" : NumberDecimal("385.00") },
... { "_id" : 7, "title" : "The Scream", "artist" : "Munch", "year" : 1893 },
... { "_id" : 8, "title" : "Blue Flower", "artist" : "O'Keefe", "year" : 1918,
... "price" : NumberDecimal("118.42") }
... ])
{
"acknowledged" : true,
"insertedIds" : [
1,
2,
3,
4,
5,
6,
7,
8
]
}
> db.artwork.find({})
{ "_id" : 1, "title" : "The Pillars of Society", "artist" : "Grosz", "year" : 1926, "price" : NumberDecimal("199.99") }
{ "_id" : 2, "title" : "Melancholy III", "artist" : "Munch", "year" : 1902, "price" : NumberDecimal("280.00") }
{ "_id" : 3, "title" : "Dancer", "artist" : "Miro", "year" : 1925, "price" : NumberDecimal("76.04") }
{ "_id" : 4, "title" : "The Great Wave off Kanagawa", "artist" : "Hokusai", "price" : NumberDecimal("167.30") }
{ "_id" : 5, "title" : "The Persistence of Memory", "artist" : "Dali", "year" : 1931, "price" : NumberDecimal("483.00") }
{ "_id" : 6, "title" : "Composition VII", "artist" : "Kandinsky", "year" : 1913, "price" : NumberDecimal("385.00") }
{ "_id" : 7, "title" : "The Scream", "artist" : "Munch", "year" : 1893 } // 注意这里没有price，聚合结果中为Others
{ "_id" : 8, "title" : "Blue Flower", "artist" : "O'Keefe", "year" : 1918, "price" : NumberDecimal("118.42") }
> db.artwork.aggregate( [
... {
... $bucket: {
... groupBy: "$price",
... boundaries: [ 0, 200, 400 ],
... default: "Other",
... output: {
... "count": { $sum: 1 },
... "titles" : { $push: "$title" }
... }
... }
... }
... ] )
{ "_id" : 0, "count" : 4, "titles" : [ "The Pillars of Society", "Dancer", "The Great Wave off Kanagawa", "Blue Flower" ] }
{ "_id" : 200, "count" : 2, "titles" : [ "Melancholy III", "Composition VII" ] }
{ "_id" : "Other", "count" : 2, "titles" : [ "The Persistence of Memory", "The Scream" ] }
- $bucket + $facet
非常常用！
db.artwork.aggregate( [
{
$facet: {
"price": [
{
$bucket: {
groupBy: "$price",
boundaries: [ 0, 200, 400 ],
default: "Other",
output: {
"count": { $sum: 1 },
"artwork" : { $push: { "title": "$title", "price": "$price" } }
}
}
}
],
"year": [
{
$bucket: {
groupBy: "$year",
boundaries: [ 1890, 1910, 1920, 1940 ],
default: "Unknown",
output: {
"count": { $sum: 1 },
"artwork": { $push: { "title": "$title", "year": "$year" } }
}
}
}
]
}
}
] )
// 输出
{
"year" : [
{
"_id" : 1890,
"count" : 2,
"artwork" : [
{
"title" : "Melancholy III",
"year" : 1902
},
{
"title" : "The Scream",
"year" : 1893
}
]
},
{
"_id" : 1910,
"count" : 2,
"artwork" : [
{
"title" : "Composition VII",
"year" : 1913
},
{
"title" : "Blue Flower",
"year" : 1918
}
]
},
{
"_id" : 1920,
"count" : 3,
"artwork" : [
{
"title" : "The Pillars of Society",
"year" : 1926
},
{
"title" : "Dancer",
"year" : 1925
},
{
"title" : "The Persistence of Memory",
"year" : 1931
}
]
},
{
// Includes the document without a year, e.g., _id: 4
"_id" : "Unknown",
"count" : 1,
"artwork" : [
{
"title" : "The Great Wave off Kanagawa"
}
]
}
],
"price" : [
{
"_id" : 0,
"count" : 4,
"artwork" : [
{
"title" : "The Pillars of Society",
"price" : NumberDecimal("199.99")
},
{
"title" : "Dancer",
"price" : NumberDecimal("76.04")
},
{
"title" : "The Great Wave off Kanagawa",
"price" : NumberDecimal("167.30")
},
{
"title" : "Blue Flower",
"price" : NumberDecimal("118.42")
}
]
},
{
"_id" : 200,
"count" : 2,
"artwork" : [
{
"title" : "Melancholy III",
"price" : NumberDecimal("280.00")
},
{
"title" : "Composition VII",
"price" : NumberDecimal("385.00")
}
]
},
{
// Includes the document without a price, e.g., _id: 7
"_id" : "Other",
"count" : 2,
"artwork" : [
{
"title" : "The Persistence of Memory",
"price" : NumberDecimal("483.00")
},
{
"title" : "The Scream"
}
]
}
]
}

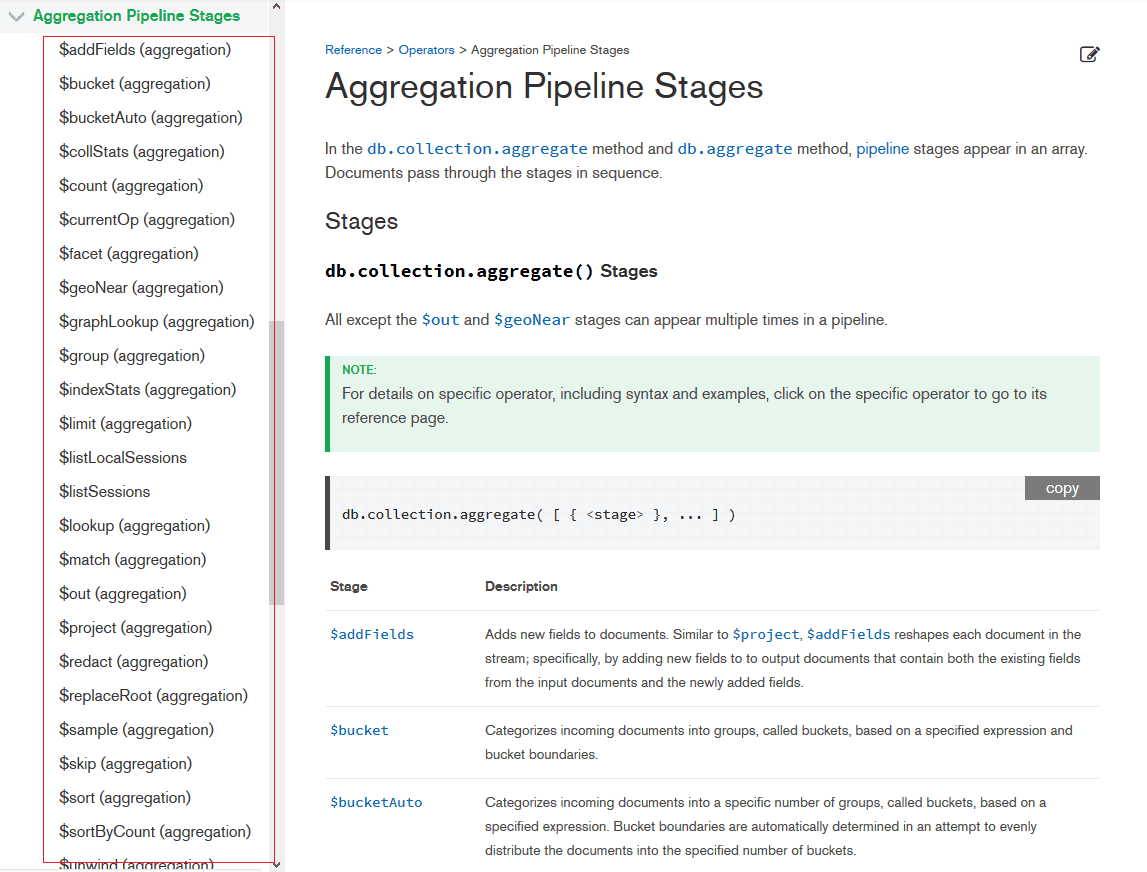

聚合操作使用的比较频繁，在实际的工作中可以参考官方文档 - Aggregation Pipeline Stages 在新窗口打开 。
Aggregation Options参数
举一个explain参数为例，更多的相关Options可以参考官方文档，Aggregrate相关配置 在新窗口打开
- explain
> db.orders.aggregate(
... [
... { $match: { status: "A" } },
... { $group: { _id: "$cust_id", total: { $sum: "$amount" } } },
... { $sort: { total: -1 } }
... ],
... {
... explain: true
... }
... )
{
"serverInfo" : {
"host" : "pdai",
"port" : 27017,
"version" : "3.6.19",
"gitVersion" : "41b289ff734a926e784d6ab42c3129f59f40d5b4"
},
"stages" : [
{
"$cursor" : {
"query" : {
"status" : "A"
},
"fields" : {
"amount" : 1,
"cust_id" : 1,
"_id" : 0
},
"queryPlanner" : {
"plannerVersion" : 1,
"namespace" : "testdb.orders",
"indexFilterSet" : false,
"parsedQuery" : {
"status" : {
"$eq" : "A"
}
},
"winningPlan" : {
"stage" : "COLLSCAN",
"filter" : {
"status" : {
"$eq" : "A"
}
},
"direction" : "forward"
},
"rejectedPlans" : [ ]
}
}
},
{
"$group" : {
"_id" : "$cust_id",
"total" : {
"$sum" : "$amount"
}
}
},
{
"$sort" : {
"sortKey" : {
"total" : -1
}
}
}
],
"ok" : 1
}
聚合 - Map Reduce

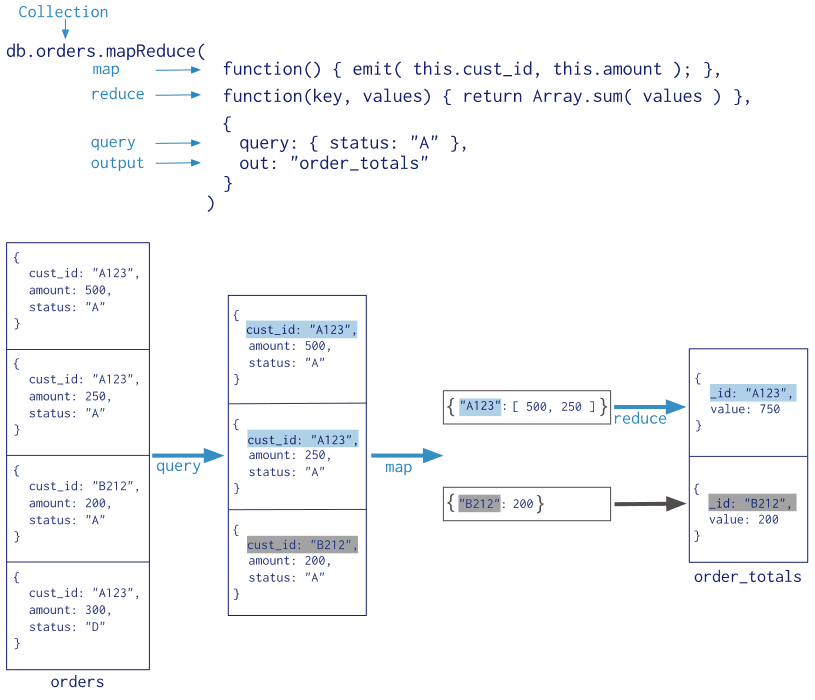

- 图例理解
官网给了个例子
- 准备数据
{
_id: ObjectId("50a8240b927d5d8b5891743c"),
cust_id: "abc123",
ord_date: new Date("Oct 04, 2012"),
status: 'A',
price: 25,
items: [ { sku: "mmm", qty: 5, price: 2.5 },
{ sku: "nnn", qty: 5, price: 2.5 } ]
}
- 计算每个顾客总花费：
map
var mapFunction1 = function() {
emit(this.cust_id, this.price);
};
reduce
var reduceFunction1 = function(keyCustId, valuesPrices) {
return Array.sum(valuesPrices);
};
out
db.orders.mapReduce(
mapFunction1,
reduceFunction1,
{ out: "map_reduce_example" }
)
- 计算每个订单中Items的均价
map
var mapFunction2 = function() {
for (var idx = 0; idx < this.items.length; idx++) {
var key = this.items[idx].sku;
var value = {
count: 1,
qty: this.items[idx].qty
};
emit(key, value);
}
};
reduce
var reduceFunction2 = function(keySKU, countObjVals) {
reducedVal = { count: 0, qty: 0 };
for (var idx = 0; idx < countObjVals.length; idx++) {
reducedVal.count += countObjVals[idx].count;
reducedVal.qty += countObjVals[idx].qty;
}
return reducedVal;
};
finalize
var finalizeFunction2 = function (key, reducedVal) {
reducedVal.avg = reducedVal.qty/reducedVal.count;
return reducedVal;
};
索引
索引即为提升查询等的效率，默认是对_id进行索引的。

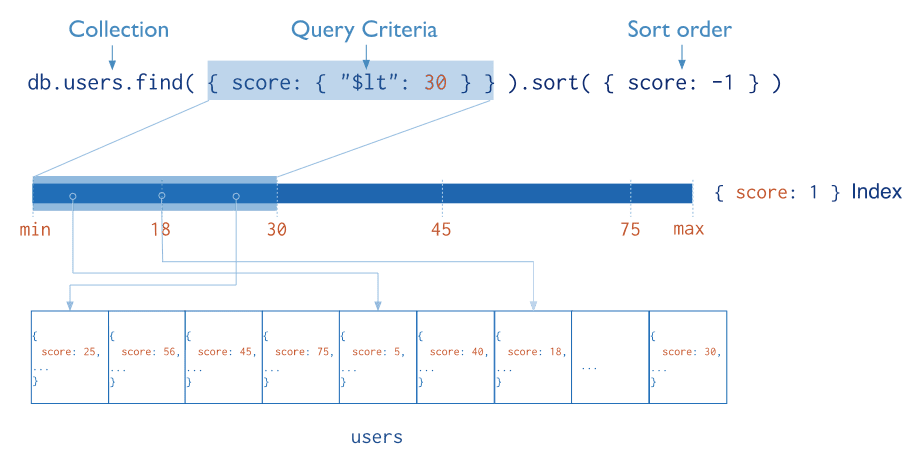

图例理解
以对users中score进行索引时查询的效果
索引的类型
对于索引，这里简单介绍下常用的类型，其它类型和例子可以参考官网文档 - 索引 在新窗口打开
- 单一索引

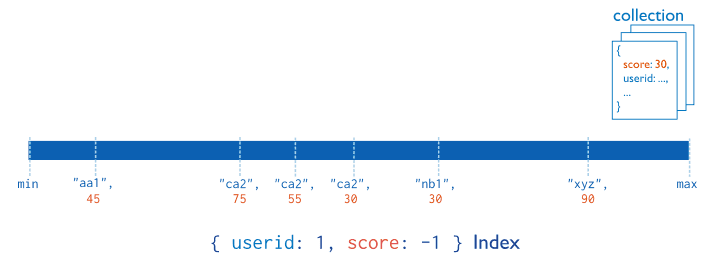

- 复合索引

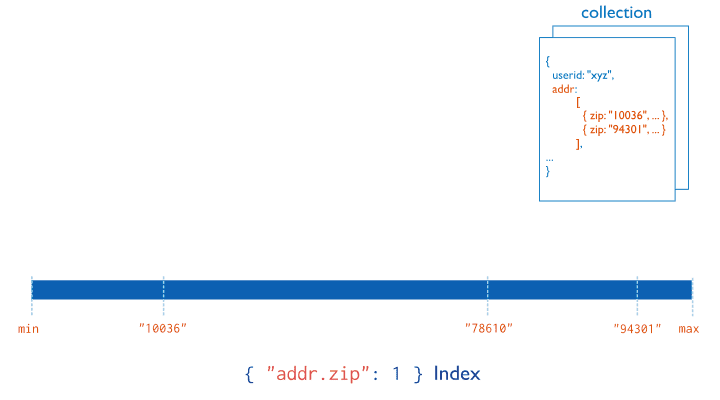

- 多键索引
对索引的操作
- 查看集合索引
db.col.getIndexes()
- 查看集合索引大小
db.col.totalIndexSize()
- 删除集合所有索引
db.col.dropIndexes()
- 删除集合指定索引
db.col.dropIndex("索引名称")
