行为型 - 中介者(Mediator)

中介者模式(Mediator pattern) : 使用中介者模式来集中相关对象之间复杂的沟通和控制方式。@pdai

• 行为型 - 中介者(Mediator)

• 意图

• 类图

• 实现

• JDK

意图

集中相关对象之间复杂的沟通和控制方式。

类图

• Mediator: 中介者，定义一个接口用于与各同事(Colleague)对象通信。
• Colleague: 同事，相关对象


实现

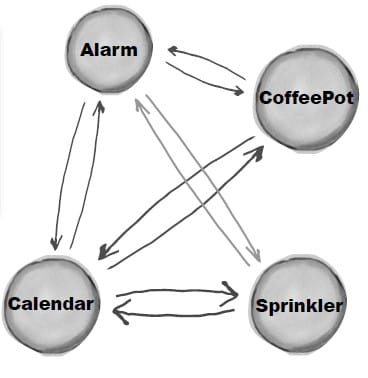

Alarm(闹钟)、CoffeePot(咖啡壶)、Calendar(日历)、Sprinkler(喷头)是一组相关的对象，在某个对象的事件产生时需要去操作其它对象，形成了下面这种依赖结构:

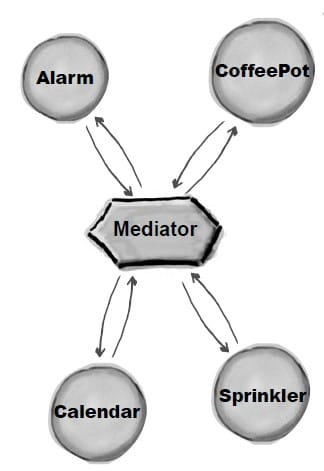

使用中介者模式可以将复杂的依赖结构变成星形结构:


    public abstract class Colleague {
        public abstract void onEvent(Mediator mediator);
    }

    public class Alarm extends Colleague {

        @Override
        public void onEvent(Mediator mediator) {
            mediator.doEvent("alarm");
        }

        public void doAlarm() {
            System.out.println("doAlarm()");
        }
    }

    public class CoffeePot extends Colleague {
        @Override
        public void onEvent(Mediator mediator) {
            mediator.doEvent("coffeePot");
        }

        public void doCoffeePot() {
            System.out.println("doCoffeePot()");
        }
    }

    public class Calender extends Colleague {
        @Override
        public void onEvent(Mediator mediator) {
            mediator.doEvent("calender");
        }

        public void doCalender() {
            System.out.println("doCalender()");
        }
    }

    public class Sprinkler extends Colleague {
        @Override
        public void onEvent(Mediator mediator) {
            mediator.doEvent("sprinkler");
        }

        public void doSprinkler() {
            System.out.println("doSprinkler()");
        }
    }

    public abstract class Mediator {
        public abstract void doEvent(String eventType);
    }

    public class ConcreteMediator extends Mediator {
        private Alarm alarm;
        private CoffeePot coffeePot;
        private Calender calender;
        private Sprinkler sprinkler;

        public ConcreteMediator(Alarm alarm, CoffeePot coffeePot, Calender calender, Sprinkler sprinkler) {
            this.alarm = alarm;
            this.coffeePot = coffeePot;
            this.calender = calender;
            this.sprinkler = sprinkler;
        }

        @Override
        public void doEvent(String eventType) {
            switch (eventType) {
                case "alarm":
                    doAlarmEvent();
                    break;
                case "coffeePot":
                    doCoffeePotEvent();
                    break;
                case "calender":
                    doCalenderEvent();
                    break;
                default:
                    doSprinklerEvent();
            }
        }

        public void doAlarmEvent() {
            alarm.doAlarm();
            coffeePot.doCoffeePot();
            calender.doCalender();
            sprinkler.doSprinkler();
        }

        public void doCoffeePotEvent() {
            // ...
        }

        public void doCalenderEvent() {
            // ...
        }

        public void doSprinklerEvent() {
            // ...
        }
    }

    public class Client {
        public static void main(String[] args) {
            Alarm alarm = new Alarm();
            CoffeePot coffeePot = new CoffeePot();
            Calender calender = new Calender();
            Sprinkler sprinkler = new Sprinkler();
            Mediator mediator = new ConcreteMediator(alarm, coffeePot, calender, sprinkler);
            // 闹钟事件到达，调用中介者就可以操作相关对象
            alarm.onEvent(mediator);
        }
    }

    doAlarm()
    doCoffeePot()
    doCalender()
    doSprinkler()

JDK

• All scheduleXXX() methods of java.util.Timer 在新窗口打开

• java.util.concurrent.Executor#execute() 在新窗口打开

• submit() and invokeXXX() methods of java.util.concurrent.ExecutorService 在新窗口打开

• scheduleXXX() methods of java.util.concurrent.ScheduledExecutorService 在新窗口打开

• java.lang.reflect.Method#invoke() 在新窗口打开
