Tomcat - Container容器之Engine：StandardEngine

上文已经知道Container的整体结构和设计，其中Engine其实就是Servlet Engine，负责处理request的顶层容器。@pdai

Tomcat - Container容器之Engine：StandardEngine
理解思路
Engine接口设计
Engine接口实现：StandardEngine
接口中简单方法实现
child, parent
Lifecycle的模板方法
LogAccess
JMX相关

理解思路

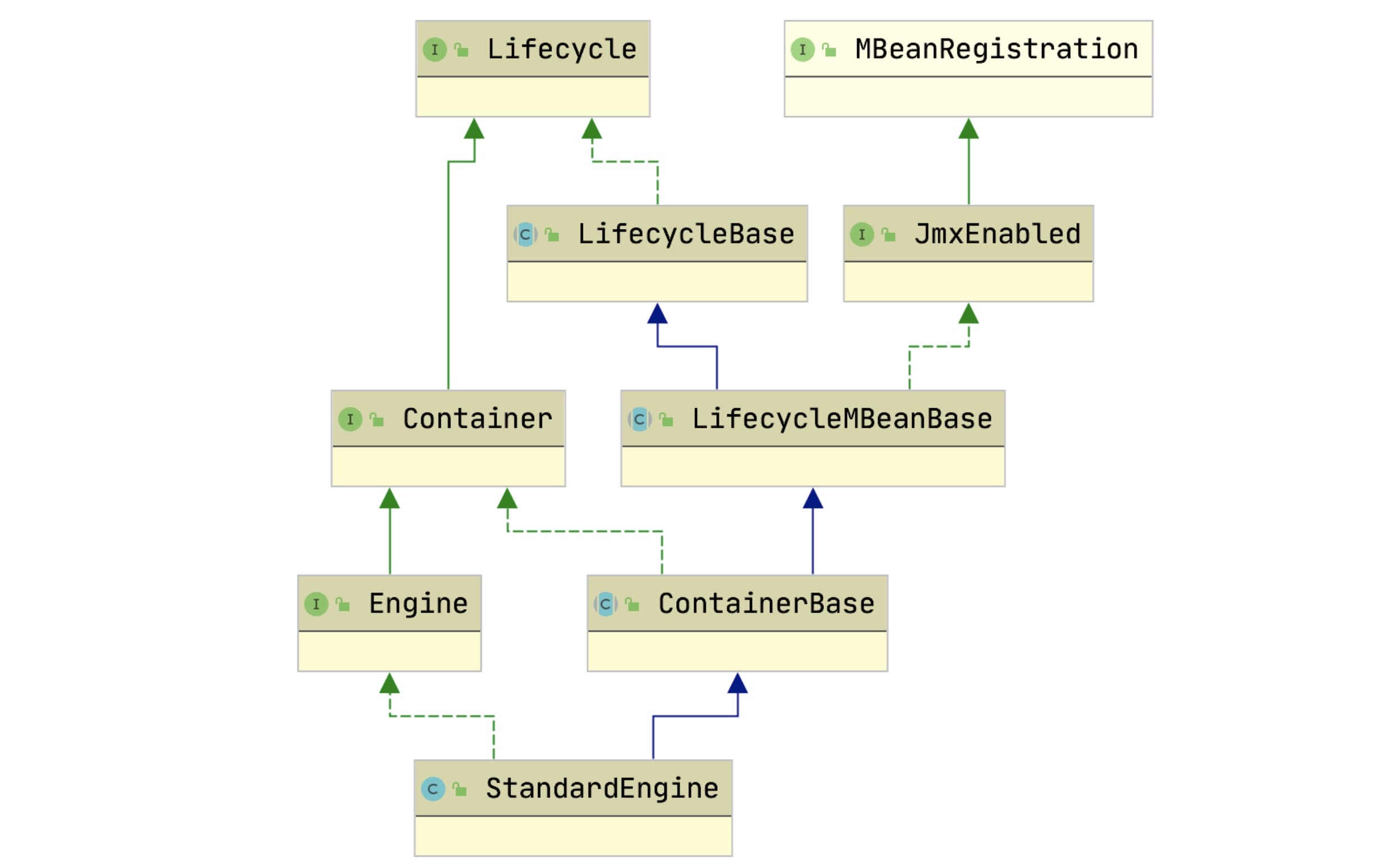

第一：抓住StandardEngine整体类依赖结构来理解

第二：结合server.xml中Engine配置来理解

见下文具体阐述。

第三：结合Engine Config官方配置文档

http://tomcat.apache.org/tomcat-9.0-doc/config/engine.html

Engine接口设计

这看Engine.java接口前，先要看下相关属性

支持设置的属性列表

属性描述backgroundProcessorDelay此值表示在此引擎及其子容器（包括所有Host和Context）上调用backgroundProcess方法之间的延迟（以秒为单位）。如果子容器的延迟值不为负（则表示它们正在使用自己的处理线程），则不会调用它们。将此值设置为正值将导致产生线程。等待指定的时间后，线程将在此引擎及其所有子容器上调用backgroundProcess方法。如果未指定，则此属性的默认值为10，表示10秒的延迟。className使用的Java类名称。此类必须实现org.apache.catalina.Engine接口。如果未指定，将使用标准值（定义如下）。defaultHost默认的主机名，它标识Host将处理针对主机名此服务器上的请求，但在此配置文件中没有配置。此名称必须与嵌套在name 其中的Host元素之一的属性匹配。jvmRoute必须在负载平衡方案中使用的标识符才能启用会话亲缘关系。标识符（在参与集群的所有Tomcat服务器之间必须是唯一的）将附加到生成的会话标识符上，因此允许前端代理始终将特定会话转发到同一Tomcat实例。注意，jvmRoute也可以使用jvmRoutesystem属性设置。属性中的jvmRoute set<Engine>将覆盖任何jvmRoute系统属性。name此引擎的逻辑名称，用于日志和错误消息。在同一台Server中使用多个Service元素时，必须为每个引擎分配一个唯一的名称。startStopThreads该引擎将用来并行启动子Host元素的线程数。特殊值0将导致使用该值 Runtime.getRuntime().availableProcessors()。Runtime.getRuntime().availableProcessors() + value除非小于1，否则将使用负值，在这种情况下将使用1个线程。如果未指定，将使用默认值1。如果使用了1个线程，那么ExecutorService将使用当前线程，而不是使用。* Engine的接口设计

这里你会发现，如下接口中包含上述defaultHost和jvmRoute属性设置；同时还有Service，因为Engine的上层是service。

    /** * An <b>Engine</b> is a Container that represents the entire Catalina servlet * engine. It is useful in the following types of scenarios: * <ul> * <li>You wish to use Interceptors that see every single request processed * by the entire engine. * <li>You wish to run Catalina in with a standalone HTTP connector, but still * want support for multiple virtual hosts. * </ul> * In general, you would not use an Engine when deploying Catalina connected * to a web server (such as Apache), because the Connector will have * utilized the web server's facilities to determine which Context (or * perhaps even which Wrapper) should be utilized to process this request. * <p> * The child containers attached to an Engine are generally implementations * of Host (representing a virtual host) or Context (representing individual * an individual servlet context), depending upon the Engine implementation. * <p> * If used, an Engine is always the top level Container in a Catalina * hierarchy. Therefore, the implementation's <code>setParent()</code> method * should throw <code>IllegalArgumentException</code>. * * @author Craig R. McClanahan */
    public interface Engine extends Container {

        /** * @return the default host name for this Engine. */
        public String getDefaultHost();


        /** * Set the default hostname for this Engine. * * @param defaultHost The new default host */
        public void setDefaultHost(String defaultHost);


        /** * @return the JvmRouteId for this engine. */
        public String getJvmRoute();


        /** * Set the JvmRouteId for this engine. * * @param jvmRouteId the (new) JVM Route ID. Each Engine within a cluster * must have a unique JVM Route ID. */
        public void setJvmRoute(String jvmRouteId);


        /** * @return the <code>Service</code> with which we are associated (if any). */
        public Service getService();


        /** * Set the <code>Service</code> with which we are associated (if any). * * @param service The service that owns this Engine */
        public void setService(Service service);
    }

其它属性支持都包含在我们上文分析的ContainerBase中

    /** * The processor delay for this component. */
    protected int backgroundProcessorDelay = -1;
    /** * The number of threads available to process start and stop events for any * children associated with this container. */
    private int startStopThreads = 1;

    ...

Engine接口实现：StandardEngine

接口中简单方法实现

上述接口里面的defaultHost, JvmRoute, service 很简单

    /** * Return the default host. */
    @Override
    public String getDefaultHost() {
        return defaultHost;
    }


    /** * Set the default host. * * @param host The new default host */
    @Override
    public void setDefaultHost(String host) {

        String oldDefaultHost = this.defaultHost;
        if (host == null) {
            this.defaultHost = null;
        } else {
            this.defaultHost = host.toLowerCase(Locale.ENGLISH);
        }
        if (getState().isAvailable()) {
            service.getMapper().setDefaultHostName(host);
        }
        support.firePropertyChange("defaultHost", oldDefaultHost,
                                    this.defaultHost);

    }


    /** * Set the cluster-wide unique identifier for this Engine. * This value is only useful in a load-balancing scenario. * <p> * This property should not be changed once it is set. */
    @Override
    public void setJvmRoute(String routeId) {
        jvmRouteId = routeId;
    }


    /** * Retrieve the cluster-wide unique identifier for this Engine. * This value is only useful in a load-balancing scenario. */
    @Override
    public String getJvmRoute() {
        return jvmRouteId;
    }

    /** * Return the <code>Service</code> with which we are associated (if any). */
    @Override
    public Service getService() {
        return this.service;
    }


    /** * Set the <code>Service</code> with which we are associated (if any). * * @param service The service that owns this Engine */
    @Override
    public void setService(Service service) {
        this.service = service;
    }

child, parent

addChild重载方法，限制只能添加Host作为子容器；

setParent直接抛出异常，因为Engine接口中已经包含了setService方法作为它的上层，而Engine的上层没有容器的概念。

    /** * Add a child Container, only if the proposed child is an implementation * of Host. * * @param child Child container to be added */
    @Override
    public void addChild(Container child) {

        if (!(child instanceof Host))
            throw new IllegalArgumentException
                (sm.getString("standardEngine.notHost"));
        super.addChild(child);

    }


    /** * Disallow any attempt to set a parent for this Container, since an * Engine is supposed to be at the top of the Container hierarchy. * * @param container Proposed parent Container */
    @Override
    public void setParent(Container container) {

        throw new IllegalArgumentException
            (sm.getString("standardEngine.notParent"));

    }

Lifecycle的模板方法

无非就是调用上文中我们介绍ContainerBase中的方法

    @Override
    protected void initInternal() throws LifecycleException {
        // Ensure that a Realm is present before any attempt is made to start
        // one. This will create the default NullRealm if necessary.
        getRealm();
        super.initInternal();
    }


    /** * Start this component and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#startInternal()}. * * @exception LifecycleException if this component detects a fatal error * that prevents this component from being used */
    @Override
    protected synchronized void startInternal() throws LifecycleException {

        // Log our server identification information
        if (log.isInfoEnabled()) {
            log.info(sm.getString("standardEngine.start", ServerInfo.getServerInfo()));
        }

        // Standard container startup
        super.startInternal();
    }

LogAccess

这里需要补充下之前没有介绍的日志访问，这里介绍下。

运行Web服务器时，正常生成的输出文件之一是访问日志，该访问日志以标准格式为服务器处理的每个请求生成一行信息。Catalina包括一个可选的Valve实现，该实现可以创建与Web服务器创建的标准格式相同的访问日志，也可以创建任意数量的自定义格式。

需要先看下xml配置; 您可以通过嵌套如下所示的Valve元素，要求Catalina为Engine， Host或Context处理的所有请求创建访问日志：

    <Engine name="Standalone" ...>
      ...
      <Valve className="org.apache.catalina.valves.AccessLogValve" prefix="catalina_access_log" suffix=".txt" pattern="common"/>
      ...
    </Engine>

好了看下具体的实现，使用适配器模式获取AccessLog类型的Valve：

适配器模式看这里：结构型 - 适配器(Adapter)

    @Override
    public AccessLog getAccessLog() {

        if (accessLogScanComplete) {
            return accessLog;
        }

        AccessLogAdapter adapter = null;
        Valve valves[] = getPipeline().getValves();
        for (Valve valve : valves) {
            if (valve instanceof AccessLog) { // 看这里
                if (adapter == null) {
                    adapter = new AccessLogAdapter((AccessLog) valve);
                } else {
                    adapter.add((AccessLog) valve);
                }
            }
        }
        if (adapter != null) {
            accessLog = adapter;
        }
        accessLogScanComplete = true;
        return accessLog;
    }

AccessLog(日志记录器)主要的作用就是记录日志，这个记录的方法就是logAccess()方法

    /** * Override the default implementation. If no access log is defined for the * Engine, look for one in the Engine's default host and then the default * host's ROOT context. If still none is found, return the default NoOp * access log. */
    @Override
    public void logAccess(Request request, Response response, long time,
            boolean useDefault) {

        boolean logged = false;

         // 如果有accessLog，则记录日志
        if (getAccessLog() != null) {
            accessLog.log(request, response, time);
            logged = true;
        }

        // 没找到且使用useDefault，表示从下层容器中获取accessLog
        if (!logged && useDefault) {
            AccessLog newDefaultAccessLog = defaultAccessLog.get();
            if (newDefaultAccessLog == null) {
                // If we reached this point, this Engine can't have an AccessLog
                // Look in the defaultHost
                Host host = (Host) findChild(getDefaultHost()); // 如果没有默认的accessLog，则获取默认Host的accessLog
                Context context = null;
                if (host != null && host.getState().isAvailable()) {
                    newDefaultAccessLog = host.getAccessLog();

                    if (newDefaultAccessLog != null) {
                        if (defaultAccessLog.compareAndSet(null,
                                newDefaultAccessLog)) {
                            AccessLogListener l = new AccessLogListener(this,
                                    host, null);
                            l.install(); // 注册AccessLog监听器至当前Engine
                        }
                    } else {
                        // Try the ROOT context of default host
                        context = (Context) host.findChild(""); // 如果仍然没有找到，则获取默认host的ROOT Context的accessLog
                        if (context != null &&
                                context.getState().isAvailable()) {
                            newDefaultAccessLog = context.getAccessLog();
                            if (newDefaultAccessLog != null) {
                                if (defaultAccessLog.compareAndSet(null,
                                        newDefaultAccessLog)) {
                                    AccessLogListener l = new AccessLogListener(
                                            this, null, context);
                                    l.install();
                                }
                            }
                        }
                    }
                }

                if (newDefaultAccessLog == null) {
                    newDefaultAccessLog = new NoopAccessLog(); // 这个其实是一个空模式，以便采用统一方式调用（不用判空了）
                    if (defaultAccessLog.compareAndSet(null,
                            newDefaultAccessLog)) {
                        AccessLogListener l = new AccessLogListener(this, host,
                                context);
                        l.install();
                    }
                }
            }

            // 最后记录日志，（上面最后有空模式实现，所以可以直接调用，不用判空）
            newDefaultAccessLog.log(request, response, time);
        }
    }

其中涉及的相关内部类如下：

    protected static final class NoopAccessLog implements AccessLog {

        @Override
        public void log(Request request, Response response, long time) {
            // NOOP
        }

        @Override
        public void setRequestAttributesEnabled(
                boolean requestAttributesEnabled) {
            // NOOP

        }

        @Override
        public boolean getRequestAttributesEnabled() {
            // NOOP
            return false;
        }
    }

    protected static final class AccessLogListener
            implements PropertyChangeListener, LifecycleListener,
            ContainerListener {

        private final StandardEngine engine;
        private final Host host;
        private final Context context;
        private volatile boolean disabled = false;

        public AccessLogListener(StandardEngine engine, Host host,
                Context context) {
            this.engine = engine;
            this.host = host;
            this.context = context;
        }

        public void install() {
            engine.addPropertyChangeListener(this);
            if (host != null) { // 同时注册至host和context
                host.addContainerListener(this);
                host.addLifecycleListener(this);
            }
            if (context != null) {
                context.addLifecycleListener(this);
            }
        }

        private void uninstall() {
            disabled = true;
            if (context != null) {
                context.removeLifecycleListener(this);
            }
            if (host != null) {
                host.removeLifecycleListener(this);
                host.removeContainerListener(this);
            }
            engine.removePropertyChangeListener(this);
        }

        @Override
        public void lifecycleEvent(LifecycleEvent event) {
            if (disabled) return;

            String type = event.getType();
            if (Lifecycle.AFTER_START_EVENT.equals(type) ||
                    Lifecycle.BEFORE_STOP_EVENT.equals(type) ||
                    Lifecycle.BEFORE_DESTROY_EVENT.equals(type)) {
                // Container is being started/stopped/removed
                // Force re-calculation and disable listener since it won't
                // be re-used
                engine.defaultAccessLog.set(null);
                uninstall();
            }
        }

        @Override
        public void propertyChange(PropertyChangeEvent evt) {
            if (disabled) return;
            if ("defaultHost".equals(evt.getPropertyName())) {
                // Force re-calculation and disable listener since it won't
                // be re-used
                engine.defaultAccessLog.set(null);
                uninstall();
            }
        }

        @Override
        public void containerEvent(ContainerEvent event) {
            // Only useful for hosts
            if (disabled) return;
            if (Container.ADD_CHILD_EVENT.equals(event.getType())) {
                Context context = (Context) event.getData();
                if (context.getPath().isEmpty()) {
                    // Force re-calculation and disable listener since it won't
                    // be re-used
                    engine.defaultAccessLog.set(null);
                    uninstall();
                }
            }
        }
    }

JMX相关

之前已经有过相关介绍，这里不再介绍相关方法，只列出相关方法：

    @Override
    protected String getObjectNameKeyProperties() {
        return "type=Engine";
    }


    @Override
    protected String getDomainInternal() {
        return getName();
    }
