在理解了Server，Service和Executor后，我们可以进入Request处理环节了。我们知道客户端是可以发起多个请求的，Tomcat也是可以支持多个webapp的，有多个上下文，且一个webapp中可以有多个Servlet...等等，那么Tomcat是如何设计组件来支撑请求处理的呢？本节文将介绍Tomcat的Container设计。@pdai
内容引入
这里一定把握住我们上下文之间的衔接，这是我们整个系列理解Tomcat的主线。@pdai

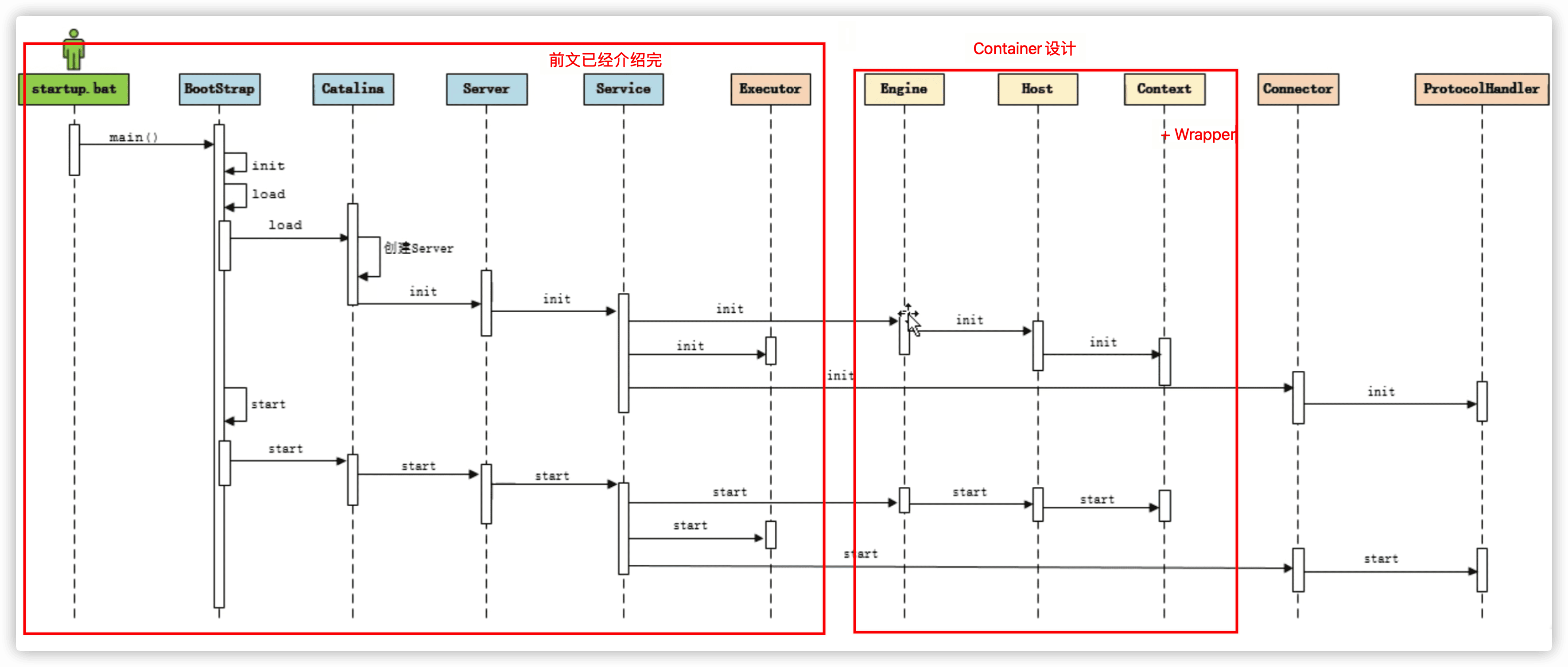

- 到目前我们研究到了哪里？
理解思路
- 为什么我们说上面的是Container呢？我们看下几个Container之间的关系：
从上图上，我们也可以看出Container顶层也是基于Lifecycle的组件设计的。
- 在设计Container组件层次组件时，上述4个组件分别做什么的呢？为什么要四种组件呢？
如下是Container接口类的相关注释
* <li><b>Engine</b> - Representation of the entire Catalina servlet engine,
* most likely containing one or more subcontainers that are either Host
* or Context implementations, or other custom groups.
* <li><b>Host</b> - Representation of a virtual host containing a number
* of Contexts.
* <li><b>Context</b> - Representation of a single ServletContext, which will
* typically contain one or more Wrappers for the supported servlets.
* <li><b>Wrapper</b> - Representation of an individual servlet definition
* (which may support multiple servlet instances if the servlet itself
* implements SingleThreadModel).
* </ul>
Engine - 表示整个catalina的servlet引擎，多数情况下包含一个或多个子容器，这些子容器要么是Host，要么是Context实现，或者是其他自定义组。
Host - 表示包含多个Context的虚拟主机的。
Context — 表示一个ServletContext，表示一个webapp，它通常包含一个或多个wrapper。
Wrapper - 表示一个servlet定义的（如果servlet本身实现了SingleThreadModel，则可能支持多个servlet实例）。
- 结合整体的框架图中上述组件部分，我们看下包含了什么？
很明显，除了四个组件的嵌套关系，Container中还包含了Realm，Cluster，Listeners, Pipleline等支持组件。
这一点，还可以通过相关注释可以看出：
**Loader** - Class loader to use for integrating new Java classes for this Container into the JVM in which Catalina is running.
**Logger** - Implementation of the log() method signatures of the ServletContext interface.
**Manager** - Manager for the pool of Sessions associated with this Container.
**Realm** - Read-only interface to a security domain, for authenticating user identities and their corresponding roles.
**Resources** - JNDI directory context enabling access to static resources, enabling custom linkages to existing server components when Catalina is embedded in a larger server.
Container的设计
这container应该包含哪些接口呢？如果你看源代码它包含二十多个接口，这里理解的时候一定要分组去理解。
Container的层次结构方法
查找父容器的方法：
/** * Get the parent container. * * @return Return the Container for which this Container is a child, if * there is one. If there is no defined parent, return * <code>null</code>. */
public Container getParent();
/** * Set the parent Container to which this Container is being added as a * child. This Container may refuse to become attached to the specified * Container by throwing an exception. * * @param container Container to which this Container is being added * as a child * * @exception IllegalArgumentException if this Container refuses to become * attached to the specified Container */
public void setParent(Container container);
由于Engine显然上层是Service，所以里面加了一个getService的方法
/** * Return the Service to which this container belongs. * @param container The container to start from * @return the Service, or null if not found */
public static Service getService(Container container) {
while (container != null && !(container instanceof Engine)) {
container = container.getParent();
}
if (container == null) {
return null;
}
return ((Engine) container).getService();
}
类比树接口，有Parent方法，那肯定也child方法：
/** * Add a new child Container to those associated with this Container, * if supported. Prior to adding this Container to the set of children, * the child's <code>setParent()</code> method must be called, with this * Container as an argument. This method may thrown an * <code>IllegalArgumentException</code> if this Container chooses not * to be attached to the specified Container, in which case it is not added * * @param child New child Container to be added * * @exception IllegalArgumentException if this exception is thrown by * the <code>setParent()</code> method of the child Container * @exception IllegalArgumentException if the new child does not have * a name unique from that of existing children of this Container * @exception IllegalStateException if this Container does not support * child Containers */
public void addChild(Container child);
/** * Obtain the child Containers associated with this Container. * * @return An array containing all children of this container. If this * Container has no children, a zero-length array is returned. */
public Container[] findChildren();
/** * Remove an existing child Container from association with this parent * Container. * * @param child Existing child Container to be removed */
public void removeChild(Container child);
Container事件监听相关方法
前文我们也分析过Tomcat的事件监听机制，Container也是一样， 比如如下的ContainerListener
/** * Add a container event listener to this component. * * @param listener The listener to add */
public void addContainerListener(ContainerListener listener);
/** * Obtain the container listeners associated with this Container. * * @return An array containing the container listeners associated with this * Container. If this Container has no registered container * listeners, a zero-length array is returned. */
public ContainerListener[] findContainerListeners();
/** * Remove a container event listener from this component. * * @param listener The listener to remove */
public void removeContainerListener(ContainerListener listener);
除了Container级别的，和前文我们理解的一样，还有属性相关的Listener, 显然就增删属性的监听方法
/** * Remove a property change listener from this component. * * @param listener The listener to remove */
public void removePropertyChangeListener(PropertyChangeListener listener);
/** * Add a property change listener to this component. * * @param listener The listener to add */
public void addPropertyChangeListener(PropertyChangeListener listener);
最后显然还有事件的触发方法
/** * Notify all container event listeners that a particular event has * occurred for this Container. The default implementation performs * this notification synchronously using the calling thread. * * @param type Event type * @param data Event data */
public void fireContainerEvent(String type, Object data);
Container功能支撑方法
前面我们知道，Loader, Logger, Manager, Realm, Resources等支撑功能。这里简单看下接口定义，相关基本实现看下节ContainerBase的实现。
- Loader
/** * Get the parent class loader. * * @return the parent class loader for this component. If not set, return * {@link #getParent()}.{@link #getParentClassLoader()}. If no * parent has been set, return the system class loader. */
public ClassLoader getParentClassLoader();
/** * Set the parent class loader for this component. For {@link Context}s * this call is meaningful only <strong>before</strong> a Loader has * been configured, and the specified value (if non-null) should be * passed as an argument to the class loader constructor. * * @param parent The new parent class loader */
public void setParentClassLoader(ClassLoader parent);
- Logger
/** * Obtain the log to which events for this container should be logged. * * @return The Logger with which this Container is associated. If there is * no associated Logger, return the Logger associated with the * parent Container (if any); otherwise return <code>null</code>. */
public Log getLogger();
/** * Return the logger name that the container will use. * @return the abbreviated name of this container for logging messages */
public String getLogName();
- Manager
体现在我们之前分析的JMX管理
/** * Obtain the JMX name for this container. * * @return the JMX name associated with this container. */
public ObjectName getObjectName();
/** * Obtain the JMX domain under which this container will be / has been * registered. * * @return The JMX domain name */
public String getDomain();
/** * Calculate the key properties string to be added to an object's * {@link ObjectName} to indicate that it is associated with this container. * * @return A string suitable for appending to the ObjectName * */
public String getMBeanKeyProperties();
/** * Obtain the number of threads available for starting and stopping any * children associated with this container. This allows start/stop calls to * children to be processed in parallel. * * @return The currently configured number of threads used to start/stop * children associated with this container */
public int getStartStopThreads();
- Realm
/** * Obtain the Realm with which this Container is associated. * * @return The associated Realm; if there is no associated Realm, the * Realm associated with the parent Container (if any); otherwise * return <code>null</code>. */
public Realm getRealm();
/** * Set the Realm with which this Container is associated. * * @param realm The newly associated Realm */
public void setRealm(Realm realm);
- Cluster
/** * Get the Cluster for this container. * * @return The Cluster with which this Container is associated. If there is * no associated Cluster, return the Cluster associated with our * parent Container (if any); otherwise return <code>null</code>. */
public Cluster getCluster();
/** * Set the Cluster with which this Container is associated. * * @param cluster the Cluster with which this Container is associated. */
public void setCluster(Cluster cluster);
- 其它
/** * Return a name string (suitable for use by humans) that describes this * Container. Within the set of child containers belonging to a particular * parent, Container names must be unique. * * @return The human readable name of this container. */
public String getName();
/** * Set a name string (suitable for use by humans) that describes this * Container. Within the set of child containers belonging to a particular * parent, Container names must be unique. * * @param name New name of this container * * @exception IllegalStateException if this Container has already been * added to the children of a parent Container (after which the name * may not be changed) */
public void setName(String name);
/** * Sets the number of threads available for starting and stopping any * children associated with this container. This allows start/stop calls to * children to be processed in parallel. * @param startStopThreads The new number of threads to be used */
public void setStartStopThreads(int startStopThreads);
/** * Obtain the location of CATALINA_BASE. * * @return The location of CATALINA_BASE. */
public File getCatalinaBase();
/** * Obtain the location of CATALINA_HOME. * * @return The location of CATALINA_HOME. */
public File getCatalinaHome();
Container基本实现：ContainerBase
就讲讲几个比较核心的
Logger
日志记录器，比较简单，直接看代码
/** * Return the Logger for this Container. */
@Override
public Log getLogger() {
if (logger != null)
return logger;
logger = LogFactory.getLog(getLogName());
return logger;
}
/** * @return the abbreviated name of this container for logging messages */
@Override
public String getLogName() {
if (logName != null) {
return logName;
}
String loggerName = null;
Container current = this;
while (current != null) {
String name = current.getName();
if ((name == null) || (name.equals(""))) {
name = "/";
} else if (name.startsWith("##")) {
name = "/" + name;
}
loggerName = "[" + name + "]"
+ ((loggerName != null) ? ("." + loggerName) : "");
current = current.getParent();
}
logName = ContainerBase.class.getName() + "." + loggerName;
return logName;
}
Cluster
getCluster：读锁，获取子类的cluster，如果没有则返回父类的cluster；getClusterInternal: 读锁，获取子类的clustersetCluster: 写锁，设置container的cluster；由于cluster具备生命周期，所以需要对停止旧的cluster，启动新的cluster；设置成功后，再触发cluster变更事件。
/** * The cluster with which this Container is associated. */
protected Cluster cluster = null;
private final ReadWriteLock clusterLock = new ReentrantReadWriteLock();
/** * The parent Container to which this Container is a child. */
protected Container parent = null;
/** * Return the Cluster with which this Container is associated. If there is * no associated Cluster, return the Cluster associated with our parent * Container (if any); otherwise return <code>null</code>. */
@Override
public Cluster getCluster() {
Lock readLock = clusterLock.readLock();
readLock.lock();
try {
if (cluster != null)
return cluster;
if (parent != null)
return parent.getCluster();
return null;
} finally {
readLock.unlock();
}
}
/* * Provide access to just the cluster component attached to this container. */
protected Cluster getClusterInternal() {
Lock readLock = clusterLock.readLock();
readLock.lock();
try {
return cluster;
} finally {
readLock.unlock();
}
}
/** * Set the Cluster with which this Container is associated. * * @param cluster The newly associated Cluster */
@Override
public void setCluster(Cluster cluster) {
Cluster oldCluster = null;
Lock writeLock = clusterLock.writeLock();
writeLock.lock();
try {
// Change components if necessary
oldCluster = this.cluster;
if (oldCluster == cluster)
return;
this.cluster = cluster;
// Stop the old component if necessary
if (getState().isAvailable() && (oldCluster != null) &&
(oldCluster instanceof Lifecycle)) {
try {
((Lifecycle) oldCluster).stop();
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.cluster.stop"), e);
}
}
// Start the new component if necessary
if (cluster != null)
cluster.setContainer(this);
if (getState().isAvailable() && (cluster != null) &&
(cluster instanceof Lifecycle)) {
try {
((Lifecycle) cluster).start();
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.cluster.start"), e);
}
}
} finally {
writeLock.unlock();
}
// Report this property change to interested listeners
support.firePropertyChange("cluster", oldCluster, cluster);
}
Realm
Realm和上面的Cluster方法基本一致。
/** * Return the Realm with which this Container is associated. If there is * no associated Realm, return the Realm associated with our parent * Container (if any); otherwise return <code>null</code>. */
@Override
public Realm getRealm() {
Lock l = realmLock.readLock();
l.lock();
try {
if (realm != null)
return realm;
if (parent != null)
return parent.getRealm();
return null;
} finally {
l.unlock();
}
}
protected Realm getRealmInternal() {
Lock l = realmLock.readLock();
l.lock();
try {
return realm;
} finally {
l.unlock();
}
}
/** * Set the Realm with which this Container is associated. * * @param realm The newly associated Realm */
@Override
public void setRealm(Realm realm) {
Lock l = realmLock.writeLock();
l.lock();
try {
// Change components if necessary
Realm oldRealm = this.realm;
if (oldRealm == realm)
return;
this.realm = realm;
// Stop the old component if necessary
if (getState().isAvailable() && (oldRealm != null) &&
(oldRealm instanceof Lifecycle)) {
try {
((Lifecycle) oldRealm).stop();
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.realm.stop"), e);
}
}
// Start the new component if necessary
if (realm != null)
realm.setContainer(this);
if (getState().isAvailable() && (realm != null) &&
(realm instanceof Lifecycle)) {
try {
((Lifecycle) realm).start();
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.realm.start"), e);
}
}
// Report this property change to interested listeners
support.firePropertyChange("realm", oldRealm, this.realm);
} finally {
l.unlock();
}
}
name等属性
此类属性改变时触发属性变更事件，比如name是容器的名字，name变更会触发name变更事件。
/** * The human-readable name of this Container. */
protected String name = null;
/** * Return a name string (suitable for use by humans) that describes this * Container. Within the set of child containers belonging to a particular * parent, Container names must be unique. */
@Override
public String getName() {
return name;
}
/** * Set a name string (suitable for use by humans) that describes this * Container. Within the set of child containers belonging to a particular * parent, Container names must be unique. * * @param name New name of this container * * @exception IllegalStateException if this Container has already been * added to the children of a parent Container (after which the name * may not be changed) */
@Override
public void setName(String name) {
if (name == null) {
throw new IllegalArgumentException(sm.getString("containerBase.nullName"));
}
String oldName = this.name;
this.name = name;
support.firePropertyChange("name", oldName, this.name);
}
child相关
添加子容器
/** * Add a new child Container to those associated with this Container, * if supported. Prior to adding this Container to the set of children, * the child's <code>setParent()</code> method must be called, with this * Container as an argument. This method may thrown an * <code>IllegalArgumentException</code> if this Container chooses not * to be attached to the specified Container, in which case it is not added * * @param child New child Container to be added * * @exception IllegalArgumentException if this exception is thrown by * the <code>setParent()</code> method of the child Container * @exception IllegalArgumentException if the new child does not have * a name unique from that of existing children of this Container * @exception IllegalStateException if this Container does not support * child Containers */
@Override
public void addChild(Container child) {
if (Globals.IS_SECURITY_ENABLED) {
PrivilegedAction<Void> dp =
new PrivilegedAddChild(child);
AccessController.doPrivileged(dp);
} else {
addChildInternal(child);
}
}
private void addChildInternal(Container child) {
if (log.isDebugEnabled()) {
log.debug("Add child " + child + " " + this);
}
synchronized(children) {
if (children.get(child.getName()) != null)
throw new IllegalArgumentException(
sm.getString("containerBase.child.notUnique", child.getName()));
child.setParent(this); // May throw IAE 设置父容器
children.put(child.getName(), child); // 使用map,方便通过name查找子容器
}
fireContainerEvent(ADD_CHILD_EVENT, child); // 触发添加子容器的事件
// Start child // 注意下这里，没有将start方法放到synchronized的原因
// Don't do this inside sync block - start can be a slow process and
// locking the children object can cause problems elsewhere
try {
if ((getState().isAvailable() ||
LifecycleState.STARTING_PREP.equals(getState())) &&
startChildren) {
child.start();
}
} catch (LifecycleException e) {
throw new IllegalStateException(sm.getString("containerBase.child.start"), e);
}
}
查找子容器
/** * Return the child Container, associated with this Container, with * the specified name (if any); otherwise, return <code>null</code> * * @param name Name of the child Container to be retrieved */
@Override
public Container findChild(String name) {
if (name == null) {
return null;
}
synchronized (children) {
return children.get(name);
}
}
/** * Return the set of children Containers associated with this Container. * If this Container has no children, a zero-length array is returned. */
@Override
public Container[] findChildren() {
synchronized (children) {
Container results[] = new Container[children.size()];
return children.values().toArray(results);
}
}
- 删除子容器
子容器有生命周期，所以应该是先停止，然后销毁（distroy), 再触发删除事件，最后将children中子容器删除。
/** * Remove an existing child Container from association with this parent * Container. * * @param child Existing child Container to be removed */
@Override
public void removeChild(Container child) {
if (child == null) {
return;
}
try {
if (child.getState().isAvailable()) {
child.stop();
}
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.child.stop"), e);
}
boolean destroy = false;
try {
// child.destroy() may have already been called which would have
// triggered this call. If that is the case, no need to destroy the
// child again.
if (!LifecycleState.DESTROYING.equals(child.getState())) {
child.destroy();
destroy = true;
}
} catch (LifecycleException e) {
log.error(sm.getString("containerBase.child.destroy"), e);
}
if (!destroy) {
fireContainerEvent(REMOVE_CHILD_EVENT, child);
}
synchronized(children) {
if (children.get(child.getName()) == null)
return;
children.remove(child.getName());
}
}
Lifecycle的模板方法
- initInternal
startStopThreads 默认为 1 ，所以 reconfigureStartStopExecutor 方法会走 if 语句，而 startStopExecutor 最开始是没有赋值的，startStopExecutor instanceof InlineExecutorService 会返回 false，因此最终会执行 startStopExecutor = new InlineExecutorService()，InlineExecutorService 只是简单地实现了 java.util.concurrent.AbstractExecutorService 类。 最终 reconfigureStartStopExecutor 给 startStopExecutor 这个成员变量设置了，startStopExecutor。
/** * The number of threads available to process start and stop events for any * children associated with this container. */
private int startStopThreads = 1;
protected ExecutorService startStopExecutor;
@Override
protected void initInternal() throws LifecycleException {
reconfigureStartStopExecutor(getStartStopThreads()); // 设置一个线程池来处理子容器启动和关闭事件
super.initInternal(); // 调用LifecycleMBeanBase的方法
}
private void reconfigureStartStopExecutor(int threads) {
if (threads == 1) {
// Use a fake executor
if (!(startStopExecutor instanceof InlineExecutorService)) {
startStopExecutor = new InlineExecutorService(); // 执行这里
}
} else {
// Delegate utility execution to the Service
Server server = Container.getService(this).getServer();
server.setUtilityThreads(threads);
startStopExecutor = server.getUtilityExecutor();
}
}
- startInternal
试想，container中有很多组件，而且属于Lifecycle生命周期管理；那么启动容器的时候，必然是逐个将这些子组件（包括子容器）启动起来。
/** * Start this component and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#startInternal()}. * * @exception LifecycleException if this component detects a fatal error * that prevents this component from being used */
@Override
protected synchronized void startInternal() throws LifecycleException {
// Start our subordinate components, if any
logger = null;
getLogger();
Cluster cluster = getClusterInternal();
if (cluster instanceof Lifecycle) {
((Lifecycle) cluster).start();
}
Realm realm = getRealmInternal();
if (realm instanceof Lifecycle) {
((Lifecycle) realm).start();
}
// Start our child containers, if any
Container children[] = findChildren();
List<Future<Void>> results = new ArrayList<>();
for (Container child : children) {
results.add(startStopExecutor.submit(new StartChild(child)));
}
MultiThrowable multiThrowable = null; // 引入一个MultiThrowable，来收集多个异常
for (Future<Void> result : results) {
try {
result.get();
} catch (Throwable e) {
log.error(sm.getString("containerBase.threadedStartFailed"), e);
if (multiThrowable == null) {
multiThrowable = new MultiThrowable();
}
multiThrowable.add(e);
}
}
if (multiThrowable != null) {
throw new LifecycleException(sm.getString("containerBase.threadedStartFailed"),
multiThrowable.getThrowable());
}
// Start the Valves in our pipeline (including the basic), if any
if (pipeline instanceof Lifecycle) {
((Lifecycle) pipeline).start();
}
setState(LifecycleState.STARTING);
// 看这个，本质是调用最上层server的utilityExecutorWrapper 线程池去执行 ContainerBackgroundProcessorMonitor 任务
if (backgroundProcessorDelay > 0) {
monitorFuture = Container.getService(ContainerBase.this).getServer()
.getUtilityExecutor().scheduleWithFixedDelay(
new ContainerBackgroundProcessorMonitor(), 0, 60, TimeUnit.SECONDS);
}
}
- stopInternal
和initInternal初始化子组件方式倒过来，逐一停止子组件，并触发相关事件。
/** * Stop this component and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#stopInternal()}. * * @exception LifecycleException if this component detects a fatal error * that prevents this component from being used */
@Override
protected synchronized void stopInternal() throws LifecycleException {
// Stop our thread
if (monitorFuture != null) {
monitorFuture.cancel(true);
monitorFuture = null;
}
threadStop();
setState(LifecycleState.STOPPING);
// Stop the Valves in our pipeline (including the basic), if any
if (pipeline instanceof Lifecycle &&
((Lifecycle) pipeline).getState().isAvailable()) {
((Lifecycle) pipeline).stop();
}
// Stop our child containers, if any
Container children[] = findChildren();
List<Future<Void>> results = new ArrayList<>();
for (Container child : children) {
results.add(startStopExecutor.submit(new StopChild(child)));
}
boolean fail = false;
for (Future<Void> result : results) {
try {
result.get();
} catch (Exception e) {
log.error(sm.getString("containerBase.threadedStopFailed"), e);
fail = true;
}
}
if (fail) {
throw new LifecycleException(
sm.getString("containerBase.threadedStopFailed"));
}
// Stop our subordinate components, if any
Realm realm = getRealmInternal();
if (realm instanceof Lifecycle) {
((Lifecycle) realm).stop();
}
Cluster cluster = getClusterInternal();
if (cluster instanceof Lifecycle) {
((Lifecycle) cluster).stop();
}
}
- destroyInternal
对比下initInternal，它初始化了什么就destory什么
@Override
protected void destroyInternal() throws LifecycleException {
Realm realm = getRealmInternal();
if (realm instanceof Lifecycle) {
((Lifecycle) realm).destroy();
}
Cluster cluster = getClusterInternal();
if (cluster instanceof Lifecycle) {
((Lifecycle) cluster).destroy();
}
// Stop the Valves in our pipeline (including the basic), if any
if (pipeline instanceof Lifecycle) {
((Lifecycle) pipeline).destroy();
}
// Remove children now this container is being destroyed
for (Container child : findChildren()) {
removeChild(child);
}
// Required if the child is destroyed directly.
if (parent != null) {
parent.removeChild(this);
}
// If init fails, this may be null
if (startStopExecutor != null) {
startStopExecutor.shutdownNow();
}
super.destroyInternal(); // 调用LifecycleMBeanBase的方法
}
