Tomcat - Server的设计和实现: StandardServer
基于前面的几篇文章，我们终于可以总体上梳理Server的具体实现了，这里体现在StandardServer具体的功能实现上。@pdai
理解思路

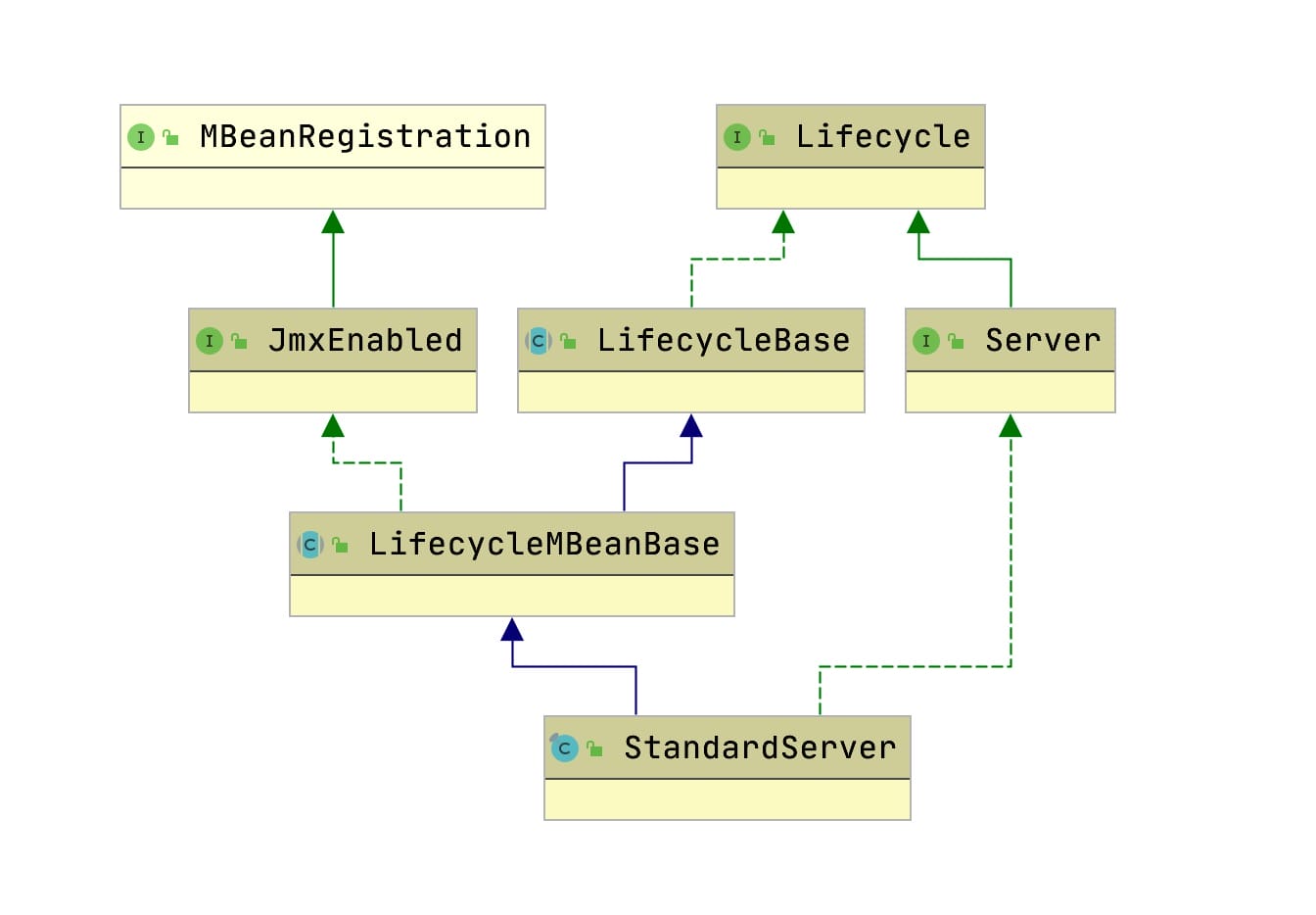

- 第一：抓住StandardServer整体类依赖结构来理解
- 第二：结合server.xml来理解
见下文具体阐述。
- 第三：结合Server Config官方配置文档
http://tomcat.apache.org/tomcat-9.0-doc/config/server.html
Server结构设计
我们需要从高一点的维度去理解Server的结构设计，而不是多少方法多少代码；这里的理解一定是要结合Server.xml对应理解。@pdai
server.xml
- 首先要看下server.xml，这样你便知道了需要了解的四个部分
<Server port="8005" shutdown="SHUTDOWN">
<!-- 1.属性说明 port:指定一个端口，这个端口负责监听关闭Tomcat的请求 shutdown:向以上端口发送的关闭服务器的命令字符串 -->
<!-- 2.Listener 相关 -->
<Listener className="org.apache.catalina.core.AprLifecycleListener" />
<Listener className="org.apache.catalina.mbeans.ServerLifecycleListener" />
<Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" />
<Listener className="org.apache.catalina.storeconfig.StoreConfigLifecycleListener"/>
<!-- 3.GlobalNamingResources 相关 -->
<GlobalNamingResources>
<Environment name="simpleValue" type="java.lang.Integer" value="30"/>
<Resource name="UserDatabase" auth="Container" type="org.apache.catalina.UserDatabase" description="User database that can be updated and saved" factory="org.apache.catalina.users.MemoryUserDatabaseFactory" pathname="conf/tomcat-users.xml" />
</GlobalNamingResources>
<!-- 4.service 相关 -->
<Service name="Catalina">
</Service>
</Server>
Server中的接口设计
- 公共属性, 包括上面的port，shutdown, address等
/** * @return the port number we listen to for shutdown commands. * * @see #getPortOffset() * @see #getPortWithOffset() */
public int getPort();
/** * Set the port number we listen to for shutdown commands. * * @param port The new port number * * @see #setPortOffset(int) */
public void setPort(int port);
/** * Get the number that offsets the port used for shutdown commands. * For example, if port is 8005, and portOffset is 1000, * the server listens at 9005. * * @return the port offset */
public int getPortOffset();
/** * Set the number that offsets the server port used for shutdown commands. * For example, if port is 8005, and you set portOffset to 1000, * connector listens at 9005. * * @param portOffset sets the port offset */
public void setPortOffset(int portOffset);
/** * Get the actual port on which server is listening for the shutdown commands. * If you do not set port offset, port is returned. If you set * port offset, port offset + port is returned. * * @return the port with offset */
public int getPortWithOffset();
/** * @return the address on which we listen to for shutdown commands. */
public String getAddress();
/** * Set the address on which we listen to for shutdown commands. * * @param address The new address */
public void setAddress(String address);
/** * @return the shutdown command string we are waiting for. */
public String getShutdown();
/** * Set the shutdown command we are waiting for. * * @param shutdown The new shutdown command */
public void setShutdown(String shutdown);
/** * Get the utility thread count. * @return the thread count */
public int getUtilityThreads();
/** * Set the utility thread count. * @param utilityThreads the new thread count */
public void setUtilityThreads(int utilityThreads);
属性描述className使用的Java类名称。此类必须实现org.apache.catalina.Server接口。如果未指定类名，则将使用标准实现。address该服务器等待关闭命令的TCP / IP地址。如果未指定地址，localhost则使用。port该服务器等待关闭命令的TCP / IP端口号。设置为-1禁用关闭端口。注意：当使用Apache Commons Daemon启动Tomcat （在Windows上作为服务运行，或者在un * xes上使用jsvc运行）时，禁用关闭端口非常有效。但是，当使用标准shell脚本运行Tomcat时，不能使用它，因为它将阻止shutdown.batportOffset应用于port和嵌套到任何嵌套连接器的端口的偏移量。它必须是一个非负整数。如果未指定，0则使用默认值。shutdown为了关闭Tomcat，必须通过与指定端口号的TCP / IP连接接收的命令字符串。utilityThreads此service中用于各种实用程序任务（包括重复执行的线程）的线程数。特殊值0将导致使用该值 Runtime.getRuntime().availableProcessors()。Runtime.getRuntime().availableProcessors() + value除非小于1，否则将使用负值， 在这种情况下将使用1个线程。预设值是1。* NamingResources
/** * @return the global naming resources. */
public NamingResourcesImpl getGlobalNamingResources();
/** * Set the global naming resources. * * @param globalNamingResources The new global naming resources */
public void setGlobalNamingResources
(NamingResourcesImpl globalNamingResources);
/** * @return the global naming resources context. */
public javax.naming.Context getGlobalNamingContext();
- Service相关， 包括添加Service， 查找Service，删除service等
/** * Add a new Service to the set of defined Services. * * @param service The Service to be added */
public void addService(Service service);
/** * Wait until a proper shutdown command is received, then return. */
public void await();
/** * Find the specified Service * * @param name Name of the Service to be returned * @return the specified Service, or <code>null</code> if none exists. */
public Service findService(String name);
/** * @return the set of Services defined within this Server. */
public Service[] findServices();
/** * Remove the specified Service from the set associated from this * Server. * * @param service The Service to be removed */
public void removeService(Service service);
StandardServer的实现
线程池
// 此service中用于各种实用程序任务（包括重复执行的线程）的线程数
@Override
public int getUtilityThreads() {
return utilityThreads;
}
/** * 获取内部进程数计算逻辑： * > 0时，即utilityThreads的值。 * <=0时，Runtime.getRuntime().availableProcessors() + result... */
private static int getUtilityThreadsInternal(int utilityThreads) {
int result = utilityThreads;
if (result <= 0) {
result = Runtime.getRuntime().availableProcessors() + result;
if (result < 2) {
result = 2;
}
}
return result;
}
@Override
public void setUtilityThreads(int utilityThreads) {
// Use local copies to ensure thread safety
int oldUtilityThreads = this.utilityThreads;
if (getUtilityThreadsInternal(utilityThreads) < getUtilityThreadsInternal(oldUtilityThreads)) {
return;
}
this.utilityThreads = utilityThreads;
if (oldUtilityThreads != utilityThreads && utilityExecutor != null) {
reconfigureUtilityExecutor(getUtilityThreadsInternal(utilityThreads));
}
}
// 线程池
private synchronized void reconfigureUtilityExecutor(int threads) {
// The ScheduledThreadPoolExecutor doesn't use MaximumPoolSize, only CorePoolSize is available
if (utilityExecutor != null) {
utilityExecutor.setCorePoolSize(threads);
} else {
ScheduledThreadPoolExecutor scheduledThreadPoolExecutor =
new ScheduledThreadPoolExecutor(threads,
new TaskThreadFactory("Catalina-utility-", utilityThreadsAsDaemon, Thread.MIN_PRIORITY));
scheduledThreadPoolExecutor.setKeepAliveTime(10, TimeUnit.SECONDS);
scheduledThreadPoolExecutor.setRemoveOnCancelPolicy(true);
scheduledThreadPoolExecutor.setExecuteExistingDelayedTasksAfterShutdownPolicy(false);
utilityExecutor = scheduledThreadPoolExecutor;
utilityExecutorWrapper = new org.apache.tomcat.util.threads.ScheduledThreadPoolExecutor(utilityExecutor);
}
}
/** * Get if the utility threads are daemon threads. * @return the threads daemon flag */
public boolean getUtilityThreadsAsDaemon() {
return utilityThreadsAsDaemon;
}
/** * Set the utility threads daemon flag. The default value is true. * @param utilityThreadsAsDaemon the new thread daemon flag */
public void setUtilityThreadsAsDaemon(boolean utilityThreadsAsDaemon) {
this.utilityThreadsAsDaemon = utilityThreadsAsDaemon;
}
Service相关方法实现
里面的方法都很简单。
/** * Add a new Service to the set of defined Services. * * @param service The Service to be added */
@Override
public void addService(Service service) {
service.setServer(this);
synchronized (servicesLock) {
Service results[] = new Service[services.length + 1];
System.arraycopy(services, 0, results, 0, services.length);
results[services.length] = service;
services = results;
if (getState().isAvailable()) {
try {
service.start();
} catch (LifecycleException e) {
// Ignore
}
}
// Report this property change to interested listeners
support.firePropertyChange("service", null, service);
}
}
public void stopAwait() {
stopAwait=true;
Thread t = awaitThread;
if (t != null) {
ServerSocket s = awaitSocket;
if (s != null) {
awaitSocket = null;
try {
s.close();
} catch (IOException e) {
// Ignored
}
}
t.interrupt();
try {
t.join(1000);
} catch (InterruptedException e) {
// Ignored
}
}
}
/** * Wait until a proper shutdown command is received, then return. * This keeps the main thread alive - the thread pool listening for http * connections is daemon threads. */
@Override
public void await() {
// Negative values - don't wait on port - tomcat is embedded or we just don't like ports
if (getPortWithOffset() == -2) {
// undocumented yet - for embedding apps that are around, alive.
return;
}
if (getPortWithOffset() == -1) {
try {
awaitThread = Thread.currentThread();
while(!stopAwait) {
try {
Thread.sleep( 10000 );
} catch( InterruptedException ex ) {
// continue and check the flag
}
}
} finally {
awaitThread = null;
}
return;
}
// Set up a server socket to wait on
try {
awaitSocket = new ServerSocket(getPortWithOffset(), 1,
InetAddress.getByName(address));
} catch (IOException e) {
log.error(sm.getString("standardServer.awaitSocket.fail", address,
String.valueOf(getPortWithOffset()), String.valueOf(getPort()),
String.valueOf(getPortOffset())), e);
return;
}
try {
awaitThread = Thread.currentThread();
// Loop waiting for a connection and a valid command
while (!stopAwait) {
ServerSocket serverSocket = awaitSocket;
if (serverSocket == null) {
break;
}
// Wait for the next connection
Socket socket = null;
StringBuilder command = new StringBuilder();
try {
InputStream stream;
long acceptStartTime = System.currentTimeMillis();
try {
socket = serverSocket.accept();
socket.setSoTimeout(10 * 1000); // Ten seconds
stream = socket.getInputStream();
} catch (SocketTimeoutException ste) {
// This should never happen but bug 56684 suggests that
// it does.
log.warn(sm.getString("standardServer.accept.timeout",
Long.valueOf(System.currentTimeMillis() - acceptStartTime)), ste);
continue;
} catch (AccessControlException ace) {
log.warn(sm.getString("standardServer.accept.security"), ace);
continue;
} catch (IOException e) {
if (stopAwait) {
// Wait was aborted with socket.close()
break;
}
log.error(sm.getString("standardServer.accept.error"), e);
break;
}
// Read a set of characters from the socket
int expected = 1024; // Cut off to avoid DoS attack
while (expected < shutdown.length()) {
if (random == null)
random = new Random();
expected += (random.nextInt() % 1024);
}
while (expected > 0) {
int ch = -1;
try {
ch = stream.read();
} catch (IOException e) {
log.warn(sm.getString("standardServer.accept.readError"), e);
ch = -1;
}
// Control character or EOF (-1) terminates loop
if (ch < 32 || ch == 127) {
break;
}
command.append((char) ch);
expected--;
}
} finally {
// Close the socket now that we are done with it
try {
if (socket != null) {
socket.close();
}
} catch (IOException e) {
// Ignore
}
}
// Match against our command string
boolean match = command.toString().equals(shutdown);
if (match) {
log.info(sm.getString("standardServer.shutdownViaPort"));
break;
} else
log.warn(sm.getString("standardServer.invalidShutdownCommand", command.toString()));
}
} finally {
ServerSocket serverSocket = awaitSocket;
awaitThread = null;
awaitSocket = null;
// Close the server socket and return
if (serverSocket != null) {
try {
serverSocket.close();
} catch (IOException e) {
// Ignore
}
}
}
}
/** * @return the specified Service (if it exists); otherwise return * <code>null</code>. * * @param name Name of the Service to be returned */
@Override
public Service findService(String name) {
if (name == null) {
return null;
}
synchronized (servicesLock) {
for (Service service : services) {
if (name.equals(service.getName())) {
return service;
}
}
}
return null;
}
/** * @return the set of Services defined within this Server. */
@Override
public Service[] findServices() {
return services;
}
/** * @return the JMX service names. */
public ObjectName[] getServiceNames() {
ObjectName onames[]=new ObjectName[ services.length ];
for( int i=0; i<services.length; i++ ) {
onames[i]=((StandardService)services[i]).getObjectName();
}
return onames;
}
/** * Remove the specified Service from the set associated from this * Server. * * @param service The Service to be removed */
@Override
public void removeService(Service service) {
synchronized (servicesLock) {
int j = -1;
for (int i = 0; i < services.length; i++) {
if (service == services[i]) {
j = i;
break;
}
}
if (j < 0)
return;
try {
services[j].stop();
} catch (LifecycleException e) {
// Ignore
}
int k = 0;
Service results[] = new Service[services.length - 1];
for (int i = 0; i < services.length; i++) {
if (i != j)
results[k++] = services[i];
}
services = results;
// Report this property change to interested listeners
support.firePropertyChange("service", service, null);
}
}
Lifecycle相关模板方法
这里只展示startInternal方法
/** * Start nested components ({@link Service}s) and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#startInternal()}. * * @exception LifecycleException if this component detects a fatal error * that prevents this component from being used */
@Override
protected void startInternal() throws LifecycleException {
fireLifecycleEvent(CONFIGURE_START_EVENT, null);
setState(LifecycleState.STARTING);
globalNamingResources.start();
// Start our defined Services
synchronized (servicesLock) {
for (int i = 0; i < services.length; i++) {
services[i].start();
}
}
if (periodicEventDelay > 0) {
monitorFuture = getUtilityExecutor().scheduleWithFixedDelay(
new Runnable() {
@Override
public void run() {
startPeriodicLifecycleEvent();
}
}, 0, 60, TimeUnit.SECONDS);
}
}
protected void startPeriodicLifecycleEvent() {
if (periodicLifecycleEventFuture == null || (periodicLifecycleEventFuture != null && periodicLifecycleEventFuture.isDone())) {
if (periodicLifecycleEventFuture != null && periodicLifecycleEventFuture.isDone()) {
// There was an error executing the scheduled task, get it and log it
try {
periodicLifecycleEventFuture.get();
} catch (InterruptedException | ExecutionException e) {
log.error(sm.getString("standardServer.periodicEventError"), e);
}
}
periodicLifecycleEventFuture = getUtilityExecutor().scheduleAtFixedRate(
new Runnable() {
@Override
public void run() {
fireLifecycleEvent(Lifecycle.PERIODIC_EVENT, null);
}
}, periodicEventDelay, periodicEventDelay, TimeUnit.SECONDS);
}
}
方法的第一行代码先触发 CONFIGURE_START_EVENT 事件，以便执行 StandardServer 的 LifecycleListener 监听器，然后调用 setState 方法设置成 LifecycleBase 的 state 属性为 LifecycleState.STARTING。 接着就 globalNamingResources.start()，跟 initInternal 方法其实是类似的。
再接着就调用 Service 的 start 方法来启动 Service 组件。可以看出，StandardServe 的 startInternal 跟 initInternal 方法类似，都是调用内部的 service 组件的相关方法。
调用完 service.init 方法后，就使用 getUtilityExecutor() 返回的线程池延迟执行startPeriodicLifecycleEvent 方法，而在 startPeriodicLifecycleEvent 方法里，也是使用 getUtilityExecutor() 方法，定期执行 fireLifecycleEvent 方法，处理 Lifecycle.PERIODIC_EVENT 事件，如果有需要定期处理的，可以再 Server 的 LifecycleListener 里处理 Lifecycle.PERIODIC_EVENT 事件。
参考文章
https://segmentfault.com/a/1190000022016991
