Spring进阶 - Spring AOP实现原理详解之JDK代理实现

上文我们学习了SpringAOP Cglib动态代理的实现，本文主要是SpringAOP JDK动态代理的案例和实现部分。@pdai

Spring进阶 - Spring AOP实现原理详解之JDK代理实现
引入
什么是JDK代理?
JDK代理的案例
不需要maven依赖
定义实体
被代理的类和接口
JDK代理类
使用代理
简单测试
JDK代理的流程
ProxyGenerator生成代码
从生成的Proxy代码看执行流程
SpringAOP中JDK代理的实现
SpringAOP Jdk代理的创建
SpringAOP Jdk代理的执行
示例源码

引入

上文我们学习了SpringAOP Cglib动态代理的实现，本文主要是SpringAOP JDK动态代理的案例和实现部分。

什么是JDK代理?

JDK动态代理是有JDK提供的工具类Proxy实现的，动态代理类是在运行时生成指定接口的代理类，每个代理实例（实现需要代理的接口）都有一个关联的调用处理程序对象，此对象实现了InvocationHandler，最终的业务逻辑是在InvocationHandler实现类的invoke方法上。

JDK代理的案例

这里我们写一个使用jdk代理的简单例子。@pdai

不需要maven依赖

jdk代理不需要任何依赖。

    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <parent>
            <artifactId>tech-pdai-spring-demos</artifactId>
            <groupId>tech.pdai</groupId>
            <version>1.0-SNAPSHOT</version>
        </parent>
        <modelVersion>4.0.0</modelVersion>

        <artifactId>006-spring-framework-demo-aop-proxy-jdk</artifactId>

        <properties>
            <maven.compiler.source>8</maven.compiler.source>
            <maven.compiler.target>8</maven.compiler.target>
        </properties>

        <!--based on jdk proxy -->
        <dependencies>

        </dependencies>

    </project>

定义实体

User

    package tech.pdai.springframework.entity;

    /** * @author pdai */
    public class User {

        /** * user's name. */
        private String name;

        /** * user's age. */
        private int age;

        /** * init. * * @param name name * @param age age */
        public User(String name, int age) {
            this.name = name;
            this.age = age;
        }

        public String getName() {
            return name;
        }

        public void setName(String name) {
            this.name = name;
        }

        public int getAge() {
            return age;
        }

        public void setAge(int age) {
            this.age = age;
        }

        @Override
        public String toString() {
            return "User{" +
                    "name='" + name + '\'' +
                    ", age=" + age +
                    '}';
        }
    }

被代理的类和接口

接口如下

    package tech.pdai.springframework.service;

    import tech.pdai.springframework.entity.User;

    import java.util.List;

    /** * @author pdai */
    public interface IUserService {

        /** * find user list. * * @return user list */
        List<User> findUserList();

        /** * add user */
        void addUser();
    }

实现类如下：

    package tech.pdai.springframework.service;

    import tech.pdai.springframework.entity.User;

    import java.util.Collections;
    import java.util.List;

    /** * @author pdai */
    public class UserServiceImpl implements IUserService {

        /** * find user list. * * @return user list */
        @Override
        public List<User> findUserList() {
            return Collections.singletonList(new User("pdai", 18));
        }

        /** * add user */
        @Override
        public void addUser() {
            // do something
        }

    }

JDK代理类

代理类如下：

    package tech.pdai.springframework.proxy;

    import tech.pdai.springframework.service.IUserService;
    import tech.pdai.springframework.service.UserServiceImpl;

    import java.lang.reflect.InvocationHandler;
    import java.lang.reflect.Method;
    import java.lang.reflect.Proxy;
    import java.util.Arrays;

    /** * This class is for proxy demo. * * @author pdai */
    public class UserLogProxy {

        /** * proxy target */
        private IUserService target;

        /** * init. * * @param target target */
        public UserLogProxy(UserServiceImpl target) {
            super();
            this.target = target;
        }

        /** * get proxy. * * @return proxy target */
        public IUserService getLoggingProxy() {
            IUserService proxy;
            ClassLoader loader = target.getClass().getClassLoader();
            Class[] interfaces = new Class[]{IUserService.class};
            InvocationHandler h = new InvocationHandler() {
                /** * proxy: 代理对象。 一般不使用该对象 method: 正在被调用的方法 args: 调用方法传入的参数 */
                @Override
                public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                    String methodName = method.getName();
                    // log - before method
                    System.out.println("[before] execute method: " + methodName);

                    // call method
                    Object result = null;
                    try {
                        // 前置通知
                        result = method.invoke(target, args);
                        // 返回通知, 可以访问到方法的返回值
                    } catch (NullPointerException e) {
                        e.printStackTrace();
                        // 异常通知, 可以访问到方法出现的异常
                    }
                    // 后置通知. 因为方法可以能会出异常, 所以访问不到方法的返回值

                    // log - after method
                    System.out.println("[after] execute method: " + methodName + ", return value: " + result);
                    return result;
                }
            };
            /** * loader: 代理对象使用的类加载器. * interfaces: 指定代理对象的类型. 即代理代理对象中可以有哪些方法. * h: 当具体调用代理对象的方法时, 应该如何进行响应, 实际上就是调用 InvocationHandler 的 invoke 方法 */
            proxy = (IUserService) Proxy.newProxyInstance(loader, interfaces, h);
            return proxy;
        }

    }

使用代理

启动类中指定代理目标并执行。

    package tech.pdai.springframework;

    import tech.pdai.springframework.proxy.UserLogProxy;
    import tech.pdai.springframework.service.IUserService;
    import tech.pdai.springframework.service.UserServiceImpl;

    /** * Jdk proxy demo. * * @author pdai */
    public class ProxyDemo {

        /** * main interface. * * @param args args */
        public static void main(String[] args) {
            // proxy
            IUserService userService = new UserLogProxy(new UserServiceImpl()).getLoggingProxy();

            // call methods
            userService.findUserList();
            userService.addUser();
        }
    }

简单测试

我们启动上述类main 函数，执行的结果如下：

    [before] execute method: findUserList
    [after] execute method: findUserList, return value: [User{name='pdai', age=18}]
    [before] execute method: addUser
    [after] execute method: addUser, return value: null

JDK代理的流程

JDK代理自动生成的class是由sun.misc.ProxyGenerator来生成的。

ProxyGenerator生成代码

我们看下sun.misc.ProxyGenerator生成代码的逻辑：

    /** * Generate a proxy class given a name and a list of proxy interfaces. * * @param name the class name of the proxy class * @param interfaces proxy interfaces * @param accessFlags access flags of the proxy class */
    public static byte[] generateProxyClass(final String name,
                                            Class<?>[] interfaces,
                                            int accessFlags)
    {
        ProxyGenerator gen = new ProxyGenerator(name, interfaces, accessFlags);
        final byte[] classFile = gen.generateClassFile();
        ...
    }

generateClassFile方法如下：

    /** * Generate a class file for the proxy class. This method drives the * class file generation process. */
    private byte[] generateClassFile() {

        /* 第一步：将所有方法包装成ProxyMethod对象 */

        // 将Object类中hashCode、equals、toString方法包装成ProxyMethod对象
        addProxyMethod(hashCodeMethod, Object.class);
        addProxyMethod(equalsMethod, Object.class);
        addProxyMethod(toStringMethod, Object.class);

        // 将代理类接口方法包装成ProxyMethod对象
        for (Class<?> intf : interfaces) {
            for (Method m : intf.getMethods()) {
                addProxyMethod(m, intf);
            }
        }

        // 校验返回类型
        for (List<ProxyMethod> sigmethods : proxyMethods.values()) {
            checkReturnTypes(sigmethods);
        }

        /* 第二步：为代理类组装字段，构造函数，方法，static初始化块等 */
        try {
            // 添加构造函数，参数是InvocationHandler
            methods.add(generateConstructor());

            // 代理方法
            for (List<ProxyMethod> sigmethods : proxyMethods.values()) {
                for (ProxyMethod pm : sigmethods) {

                    // 字段
                    fields.add(new FieldInfo(pm.methodFieldName,
                        "Ljava/lang/reflect/Method;",
                            ACC_PRIVATE | ACC_STATIC));

                    // 上述ProxyMethod中的方法
                    methods.add(pm.generateMethod());
                }
            }

            // static初始化块
            methods.add(generateStaticInitializer());

        } catch (IOException e) {
            throw new InternalError("unexpected I/O Exception", e);
        }

        if (methods.size() > 65535) {
            throw new IllegalArgumentException("method limit exceeded");
        }
        if (fields.size() > 65535) {
            throw new IllegalArgumentException("field limit exceeded");
        }

        /* 第三步：写入class文件 */

        /* * Make sure that constant pool indexes are reserved for the * following items before starting to write the final class file. */
        cp.getClass(dotToSlash(className));
        cp.getClass(superclassName);
        for (Class<?> intf: interfaces) {
            cp.getClass(dotToSlash(intf.getName()));
        }

        /* * Disallow new constant pool additions beyond this point, since * we are about to write the final constant pool table. */
        cp.setReadOnly();

        ByteArrayOutputStream bout = new ByteArrayOutputStream();
        DataOutputStream dout = new DataOutputStream(bout);

        try {
            /* * Write all the items of the "ClassFile" structure. * See JVMS section 4.1. */
                                        // u4 magic;
            dout.writeInt(0xCAFEBABE);
                                        // u2 minor_version;
            dout.writeShort(CLASSFILE_MINOR_VERSION);
                                        // u2 major_version;
            dout.writeShort(CLASSFILE_MAJOR_VERSION);

            cp.write(dout);             // (write constant pool)

                                        // u2 access_flags;
            dout.writeShort(accessFlags);
                                        // u2 this_class;
            dout.writeShort(cp.getClass(dotToSlash(className)));
                                        // u2 super_class;
            dout.writeShort(cp.getClass(superclassName));

                                        // u2 interfaces_count;
            dout.writeShort(interfaces.length);
                                        // u2 interfaces[interfaces_count];
            for (Class<?> intf : interfaces) {
                dout.writeShort(cp.getClass(
                    dotToSlash(intf.getName())));
            }

                                        // u2 fields_count;
            dout.writeShort(fields.size());
                                        // field_info fields[fields_count];
            for (FieldInfo f : fields) {
                f.write(dout);
            }

                                        // u2 methods_count;
            dout.writeShort(methods.size());
                                        // method_info methods[methods_count];
            for (MethodInfo m : methods) {
                m.write(dout);
            }

                                            // u2 attributes_count;
            dout.writeShort(0); // (no ClassFile attributes for proxy classes)

        } catch (IOException e) {
            throw new InternalError("unexpected I/O Exception", e);
        }

        return bout.toByteArray();
    }

一共三个步骤（把大象装进冰箱分几步？）：

第一步：（把冰箱门打开）准备工作，将所有方法包装成ProxyMethod对象，包括Object类中hashCode、equals、toString方法，以及被代理的接口中的方法
第二步：（把大象装进去）为代理类组装字段，构造函数，方法，static初始化块等
第三步：（把冰箱门带上）写入class文件

从生成的Proxy代码看执行流程

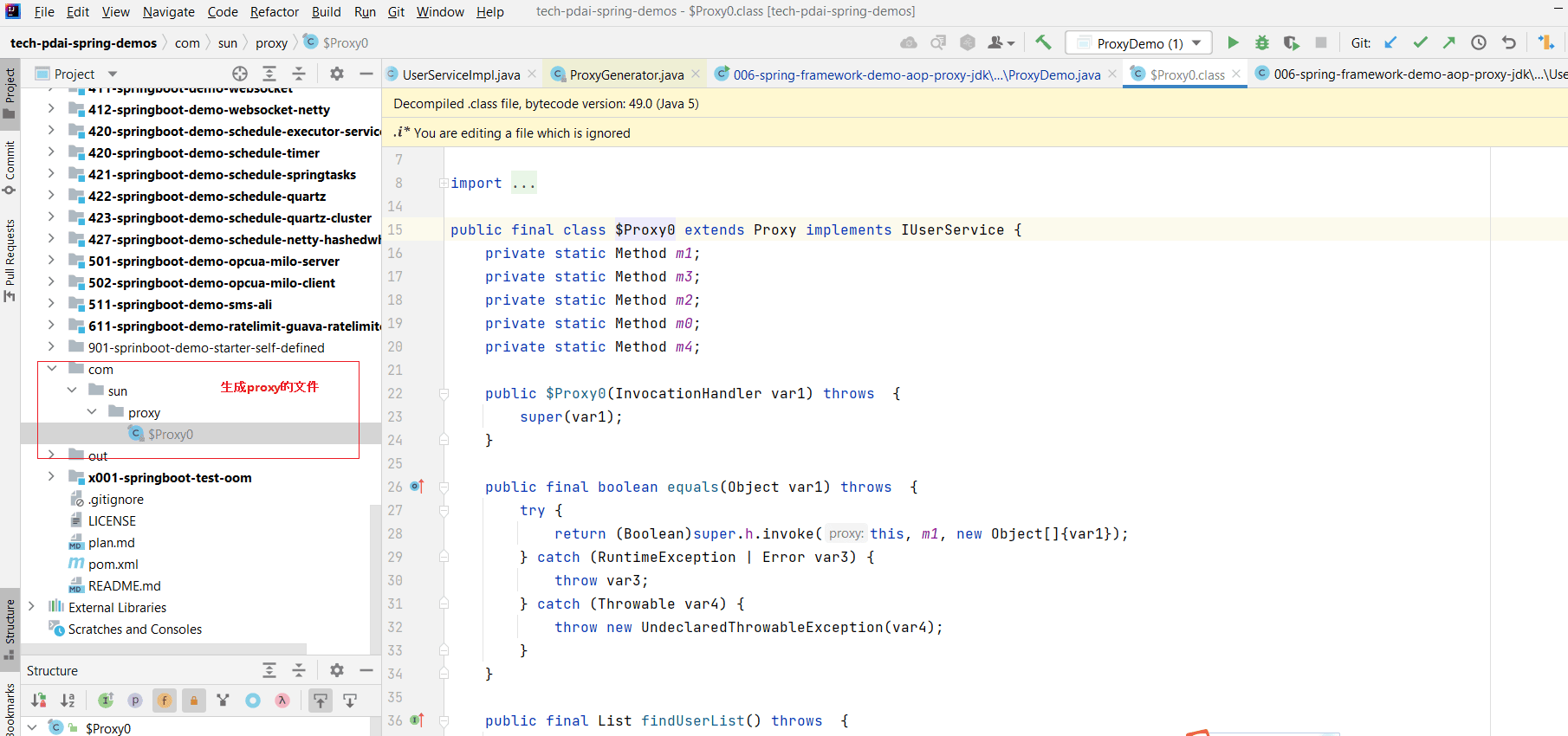

从上述sun.misc.ProxyGenerator类中可以看到，这个类里面有一个配置参数sun.misc.ProxyGenerator.saveGeneratedFiles，可以通过这个参数将生成的Proxy类保存在本地，比如设置为true 执行后，生成的文件如下：

我们看下生成后的代码：

    //
    // Source code recreated from a .class file by IntelliJ IDEA
    // (powered by FernFlower decompiler)
    //

    package com.sun.proxy;

    import java.lang.reflect.InvocationHandler;
    import java.lang.reflect.Method;
    import java.lang.reflect.Proxy;
    import java.lang.reflect.UndeclaredThrowableException;
    import java.util.List;
    import tech.pdai.springframework.service.IUserService;

    // 所有类和方法都是final类型的
    public final class $Proxy0 extends Proxy implements IUserService {
        private static Method m1;
        private static Method m3;
        private static Method m2;
        private static Method m0;
        private static Method m4;

        // 构造函数注入 InvocationHandler
        public $Proxy0(InvocationHandler var1) throws  {
            super(var1);
        }

        public final boolean equals(Object var1) throws  {
            try {
                return (Boolean)super.h.invoke(this, m1, new Object[]{var1});
            } catch (RuntimeException | Error var3) {
                throw var3;
            } catch (Throwable var4) {
                throw new UndeclaredThrowableException(var4);
            }
        }

        public final List findUserList() throws  {
            try {
                return (List)super.h.invoke(this, m3, (Object[])null);
            } catch (RuntimeException | Error var2) {
                throw var2;
            } catch (Throwable var3) {
                throw new UndeclaredThrowableException(var3);
            }
        }

        public final String toString() throws  {
            try {
                return (String)super.h.invoke(this, m2, (Object[])null);
            } catch (RuntimeException | Error var2) {
                throw var2;
            } catch (Throwable var3) {
                throw new UndeclaredThrowableException(var3);
            }
        }

        public final int hashCode() throws  {
            try {
                return (Integer)super.h.invoke(this, m0, (Object[])null);
            } catch (RuntimeException | Error var2) {
                throw var2;
            } catch (Throwable var3) {
                throw new UndeclaredThrowableException(var3);
            }
        }

        public final void addUser() throws  {
            try {
                super.h.invoke(this, m4, (Object[])null);
            } catch (RuntimeException | Error var2) {
                throw var2;
            } catch (Throwable var3) {
                throw new UndeclaredThrowableException(var3);
            }
        }

        static {
            try {
                // 初始化 methods, 2个IUserService接口中的方法，3个Object中的接口
                m1 = Class.forName("java.lang.Object").getMethod("equals", Class.forName("java.lang.Object"));
                m3 = Class.forName("tech.pdai.springframework.service.IUserService").getMethod("findUserList");
                m2 = Class.forName("java.lang.Object").getMethod("toString");
                m0 = Class.forName("java.lang.Object").getMethod("hashCode");
                m4 = Class.forName("tech.pdai.springframework.service.IUserService").getMethod("addUser");
            } catch (NoSuchMethodException var2) {
                throw new NoSuchMethodError(var2.getMessage());
            } catch (ClassNotFoundException var3) {
                throw new NoClassDefFoundError(var3.getMessage());
            }
        }
    }

上述代码是比较容易理解的，我就不画图了。主要流程是：

ProxyGenerator创建Proxy的具体类$Proxy0
由static初始化块初始化接口方法：2个IUserService接口中的方法，3个Object中的接口方法
由构造函数注入InvocationHandler
执行的时候，通过ProxyGenerator创建的Proxy，调用InvocationHandler的invoke方法，执行我们自定义的invoke方法

SpringAOP中JDK代理的实现

SpringAOP扮演的是JDK代理的创建和调用两个角色，我们通过这两个方向来看下SpringAOP的代码（JdkDynamicAopProxy类）

SpringAOP Jdk代理的创建

代理的创建比较简单，调用getProxy方法，然后直接调用JDK中Proxy.newProxyInstance()方法将classloader和被代理的接口方法传入即可。

    @Override
    public Object getProxy() {
        return getProxy(ClassUtils.getDefaultClassLoader());
    }

    @Override
    public Object getProxy(@Nullable ClassLoader classLoader) {
        if (logger.isTraceEnabled()) {
            logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
        }
        return Proxy.newProxyInstance(classLoader, this.proxiedInterfaces, this);
    }

SpringAOP Jdk代理的执行

执行的方法如下：

    /** * Implementation of {@code InvocationHandler.invoke}. * <p>Callers will see exactly the exception thrown by the target, * unless a hook method throws an exception. */
    @Override
    @Nullable
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        Object oldProxy = null;
        boolean setProxyContext = false;

        TargetSource targetSource = this.advised.targetSource;
        Object target = null;

        try {
            // 执行的是equal方法
            if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
                // The target does not implement the equals(Object) method itself.
                return equals(args[0]);
            }
            // 执行的是hashcode方法
            else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
                // The target does not implement the hashCode() method itself.
                return hashCode();
            }
            // 如果是包装类，则dispatch to proxy config
            else if (method.getDeclaringClass() == DecoratingProxy.class) {
                // There is only getDecoratedClass() declared -> dispatch to proxy config.
                return AopProxyUtils.ultimateTargetClass(this.advised);
            }
            // 用反射方式来执行切点
            else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
                    method.getDeclaringClass().isAssignableFrom(Advised.class)) {
                // Service invocations on ProxyConfig with the proxy config...
                return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
            }

            Object retVal;

            if (this.advised.exposeProxy) {
                // Make invocation available if necessary.
                oldProxy = AopContext.setCurrentProxy(proxy);
                setProxyContext = true;
            }

            // Get as late as possible to minimize the time we "own" the target,
            // in case it comes from a pool.
            target = targetSource.getTarget();
            Class<?> targetClass = (target != null ? target.getClass() : null);

            // 获取拦截链
            List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

            // Check whether we have any advice. If we don't, we can fallback on direct
            // reflective invocation of the target, and avoid creating a MethodInvocation.
            if (chain.isEmpty()) {
                // We can skip creating a MethodInvocation: just invoke the target directly
                // Note that the final invoker must be an InvokerInterceptor so we know it does
                // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
                Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
                retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
            }
            else {
                // We need to create a method invocation...
                MethodInvocation invocation =
                        new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
                // Proceed to the joinpoint through the interceptor chain.
                retVal = invocation.proceed();
            }

            // Massage return value if necessary.
            Class<?> returnType = method.getReturnType();
            if (retVal != null && retVal == target &&
                    returnType != Object.class && returnType.isInstance(proxy) &&
                    !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
                // Special case: it returned "this" and the return type of the method
                // is type-compatible. Note that we can't help if the target sets
                // a reference to itself in another returned object.
                retVal = proxy;
            }
            else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
                throw new AopInvocationException(
                        "Null return value from advice does not match primitive return type for: " + method);
            }
            return retVal;
        }
        finally {
            if (target != null && !targetSource.isStatic()) {
                // Must have come from TargetSource.
                targetSource.releaseTarget(target);
            }
            if (setProxyContext) {
                // Restore old proxy.
                AopContext.setCurrentProxy(oldProxy);
            }
        }
    }

示例源码

https://github.com/realpdai/tech-pdai-spring-demos

Spring进阶 - Spring AOP实现原理详解之JDK代理实现

# Spring进阶 - Spring AOP实现原理详解之JDK代理实现

# 引入

# 什么是JDK代理?

# JDK代理的案例

# 不需要maven依赖

# 定义实体

# 被代理的类和接口

# JDK代理类

# 使用代理

# 简单测试

# JDK代理的流程

# ProxyGenerator生成代码

# 从生成的Proxy代码看执行流程

# SpringAOP中JDK代理的实现

# SpringAOP Jdk代理的创建

# SpringAOP Jdk代理的执行

# 示例源码

Spring进阶 - Spring AOP实现原理详解之JDK代理实现

引入

什么是JDK代理?

JDK代理的案例

不需要maven依赖

定义实体

被代理的类和接口

JDK代理类

使用代理

简单测试

JDK代理的流程

ProxyGenerator生成代码

从生成的Proxy代码看执行流程

SpringAOP中JDK代理的实现

SpringAOP Jdk代理的创建

SpringAOP Jdk代理的执行

示例源码
