SpringBoot集成文件 - 集成POI之Word导出

arcstack约 1112 字大约 4 分钟

SpringBoot集成文件 - 集成POI之Word导出

前文我们介绍了通过Apache POI导出excel，而Apache POI包含是操作Office Open XML（OOXML）标准和微软的OLE 2复合文档格式（OLE2）的Java API。所以也是可以通过POI来导出word的。本文主要介绍通过SpringBoot集成POI工具实现Word的导出功能。@pdai

SpringBoot集成文件 - 集成POI之Word导出
知识准备
什么是POI
实现案例
Pom依赖
导出Word
示例源码
参考文档

知识准备

需要理解Apache POI遵循的标准（Office Open XML（OOXML）标准和微软的OLE 2复合文档格式（OLE2）），这将对应着API的依赖包。@pdai

什么是POI

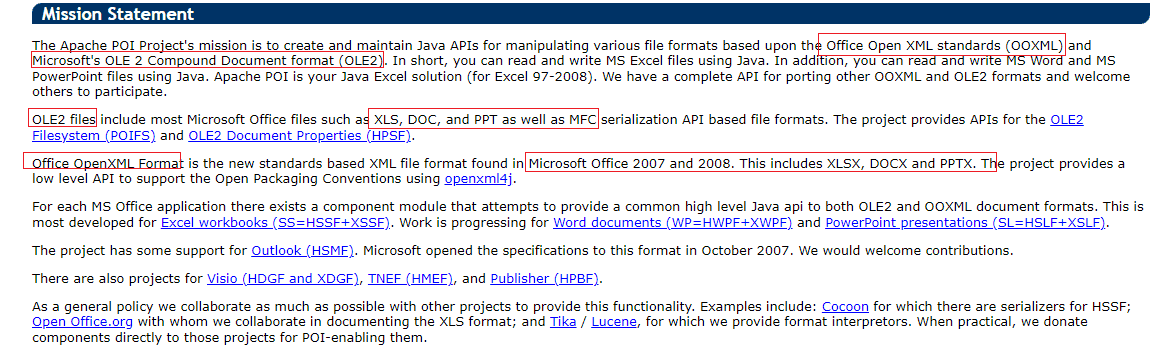

Apache POI 是用Java编写的免费开源的跨平台的 Java API，Apache POI提供API给Java程序对Microsoft Office格式档案读和写的功能。POI为“Poor Obfuscation Implementation”的首字母缩写，意为“简洁版的模糊实现”。

Apache POI 是创建和维护操作各种符合Office Open XML（OOXML）标准和微软的OLE 2复合文档格式（OLE2）的Java API。更多请参考官方文档在新窗口打开open in new window 。

实现案例

这里展示SpringBoot集成POI导出用户信息的Word例子。

Pom依赖

引入poi的依赖包

    <dependency>
        <groupId>org.apache.poi</groupId>
        <artifactId>poi</artifactId>
        <version>5.2.2</version>
    </dependency>
    <dependency>
        <groupId>org.apache.poi</groupId>
        <artifactId>poi-ooxml</artifactId>
        <version>5.2.2</version>
    </dependency>

导出Word

UserController中导出的方法

    package tech.pdai.springboot.file.word.poi.controller;


    import java.io.OutputStream;

    import javax.servlet.http.HttpServletResponse;

    import io.swagger.annotations.ApiOperation;
    import org.apache.poi.xwpf.usermodel.XWPFDocument;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RestController;
    import tech.pdai.springboot.file.word.poi.service.IUserService;

    /** * @author pdai */
    @RestController
    @RequestMapping("/user")
    public class UserController {

        @Autowired
        private IUserService userService;

        @ApiOperation("Download Word")
        @GetMapping("/word/download")
        public void download(HttpServletResponse response) {
            try {
                XWPFDocument document = userService.generateWordXWPFDocument();
                response.reset();
                response.setContentType("application/vnd.ms-excel");
                response.setHeader("Content-disposition",
                        "attachment;filename=user_world_" + System.currentTimeMillis() + ".docx");
                OutputStream os = response.getOutputStream();
                document.write(os);
                os.close();
            } catch (Exception e) {
                e.printStackTrace();
            }
        }

    }

UserServiceImple中导出Word方法

    package tech.pdai.springboot.file.word.poi.service.impl;

    import java.io.FileInputStream;
    import java.io.FileNotFoundException;
    import java.io.IOException;
    import java.io.InputStream;
    import java.math.BigInteger;
    import java.util.ArrayList;
    import java.util.List;

    import lombok.extern.slf4j.Slf4j;
    import org.apache.poi.openxml4j.exceptions.InvalidFormatException;
    import org.apache.poi.util.Units;
    import org.apache.poi.xwpf.usermodel.BreakType;
    import org.apache.poi.xwpf.usermodel.Document;
    import org.apache.poi.xwpf.usermodel.ParagraphAlignment;
    import org.apache.poi.xwpf.usermodel.XWPFDocument;
    import org.apache.poi.xwpf.usermodel.XWPFParagraph;
    import org.apache.poi.xwpf.usermodel.XWPFRun;
    import org.apache.poi.xwpf.usermodel.XWPFTable;
    import org.apache.poi.xwpf.usermodel.XWPFTableCell;
    import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTTblPr;
    import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTTblWidth;
    import org.springframework.core.io.ClassPathResource;
    import org.springframework.core.io.Resource;
    import org.springframework.stereotype.Service;
    import tech.pdai.springboot.file.word.poi.entity.User;
    import tech.pdai.springboot.file.word.poi.service.IUserService;

    /** * @author pdai */
    @Slf4j
    @Service
    public class UserServiceImpl implements IUserService {

        @Override
        public XWPFDocument generateWordXWPFDocument() {
            XWPFDocument doc = new XWPFDocument();

            // Title
            createTitle(doc, "Java 全栈知识体系");

            // Chapter 1
            createChapterH1(doc, "1. 知识准备");
            createChapterH2(doc, "1.1 什么是POI");
            createParagraph(doc, "Apache POI 是创建和维护操作各种符合Office Open XML（OOXML）标准和微软的OLE 2复合文档格式（OLE2）的Java API。用它可以使用Java读取和创建,修改MS Excel文件.而且,还可以使用Java读取和创建MS Word和MSPowerPoint文件。更多请参考[官方文档](https://poi.apache.org/index.html)");
            createChapterH2(doc, "1.2 POI中基础概念");
            createParagraph(doc, "生成xls和xlsx有什么区别？POI对Excel中的对象的封装对应关系？");

            // Chapter 2
            createChapterH1(doc, "2. 实现案例");
            createChapterH2(doc, "2.1 用户列表示例");
            createParagraph(doc, "以导出用户列表为例");

            // 表格
            List<User> userList = getUserList();
            XWPFParagraph paragraph = doc.createParagraph();
            XWPFTable table = paragraph.getDocument().createTable(userList.size(), 5);
            table.setWidth(500);
            table.setCellMargins(20, 20, 20, 20);

            //表格属性
            CTTblPr tablePr = table.getCTTbl().addNewTblPr();
            //表格宽度
            CTTblWidth width = tablePr.addNewTblW();
            width.setW(BigInteger.valueOf(8000));

            for(int i = 0; i< userList.size(); i++) {
                List<XWPFTableCell> tableCells = table.getRow(i).getTableCells();
                tableCells.get(0).setText(userList.get(i).getId()+"");
                tableCells.get(1).setText(userList.get(i).getUserName());
                tableCells.get(2).setText(userList.get(i).getEmail());
                tableCells.get(3).setText(userList.get(i).getPhoneNumber()+"");
                tableCells.get(4).setText(userList.get(i).getDescription());
            }

            createChapterH2(doc, "2.2 图片导出示例");
            createParagraph(doc, "以导出图片为例");
            // 图片
            InputStream stream = null;
            try {
                XWPFParagraph paragraph2 = doc.createParagraph();
                Resource resource = new ClassPathResource("pdai-guli.png");
                stream = new FileInputStream(resource.getFile());
                XWPFRun run = paragraph2.createRun();
                run.addPicture(stream, Document.PICTURE_TYPE_PNG, "Generated", Units.toEMU(256), Units.toEMU(256));
            } catch (IOException | InvalidFormatException e) {
                e.printStackTrace();
            }

            return doc;
        }

        private void createTitle(XWPFDocument doc, String content) {
            XWPFParagraph title = doc.createParagraph();
            title.setAlignment(ParagraphAlignment.CENTER);
            XWPFRun r1 = title.createRun();
            r1.setBold(true);
            r1.setFontFamily("宋体");
            r1.setText(content);
            r1.setFontSize(22);
        }

        private void createChapterH1(XWPFDocument doc, String content) {
            XWPFParagraph actTheme = doc.createParagraph();
            actTheme.setAlignment(ParagraphAlignment.LEFT);
            XWPFRun runText1 = actTheme.createRun();
            runText1.setBold(true);
            runText1.setText(content);
            runText1.setFontSize(18);
        }

        private void createChapterH2(XWPFDocument doc, String content) {
            XWPFParagraph actType = doc.createParagraph();
            XWPFRun runText2 = actType.createRun();
            runText2.setBold(true);
            runText2.setText(content);
            runText2.setFontSize(15);
        }

        private void createParagraph(XWPFDocument doc, String content) {
            XWPFParagraph actType = doc.createParagraph();
            XWPFRun runText2 = actType.createRun();
            runText2.setText(content);
            runText2.setFontSize(11);
        }

        private List<User> getUserList() {
            List<User> userList = new ArrayList<>();
            for (int i = 0; i < 5; i++) {
                userList.add(User.builder()
                        .id(Long.parseLong(i + "")).userName("pdai" + i).email("pdai@pdai.tech" + i).phoneNumber(121231231231L)
                        .description("hello world" + i)
                        .build());
            }
            return userList;
        }

    }

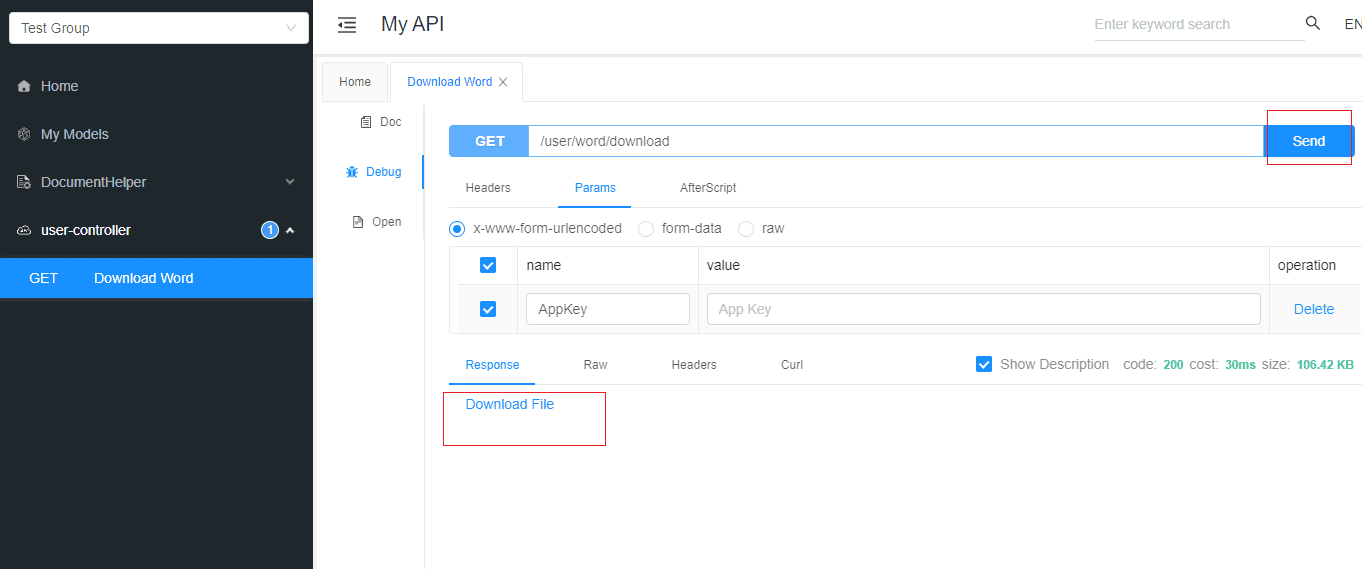

导出

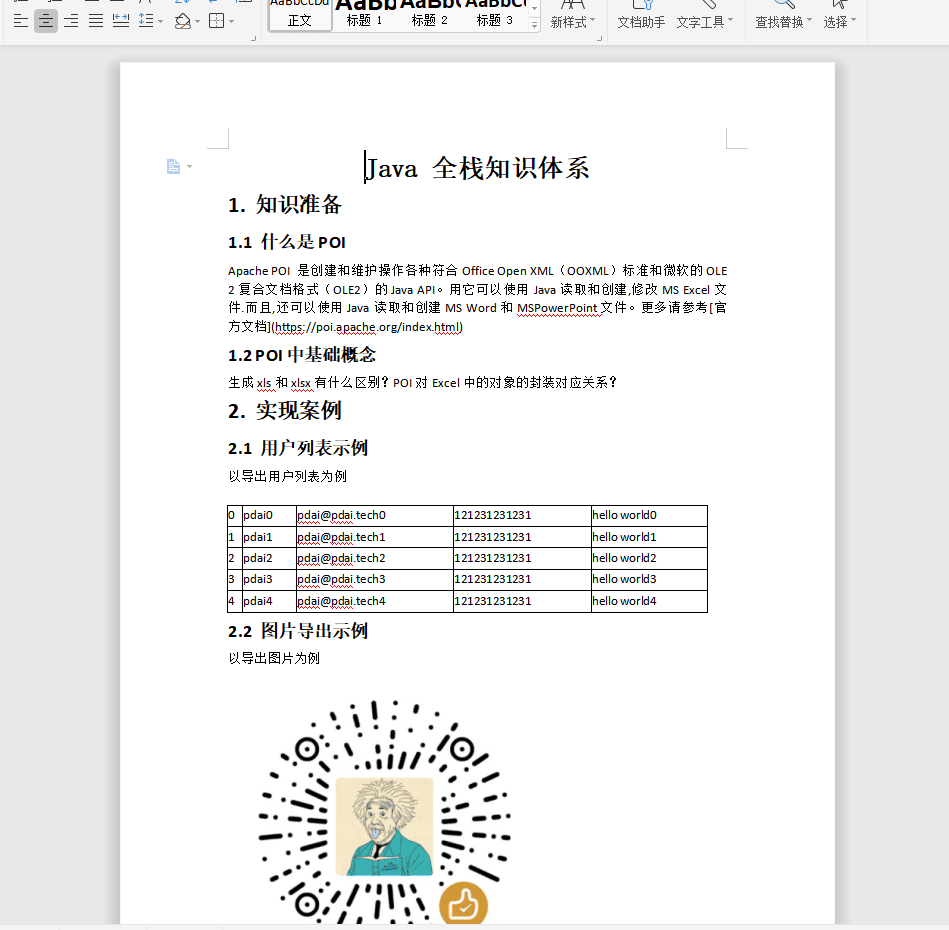

导出后的word

示例源码

https://github.com/realpdai/tech-pdai-spring-demos

参考文档

https://poi.apache.org/index.html
