▶SpringBoot集成JavaFX2 - JavaFX 2.0应用

很多人对Java开发native程序第一反应还停留在暗灰色单一风格的Java GUI界面，开发方式还停留在AWT或者Swing。本文主要基于SpringBoot和JavaFX开发一个Demo给你展示Java Native应用可以做到什么样的程度。当然JavaFX 2.0没有流行起来也是有原因的，而且目前native的选择很多，前端是个框架都会搞个native... @pdai

技术背景

  • Springboot 请参考SpringBoot章节

  • JavaFX 2.0 请参考(fxml,css,controller)

2.1.6.12 Java8 JavaFx

Demo介绍

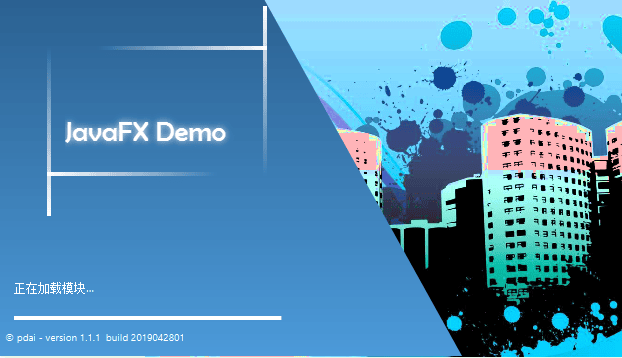

  • Loader

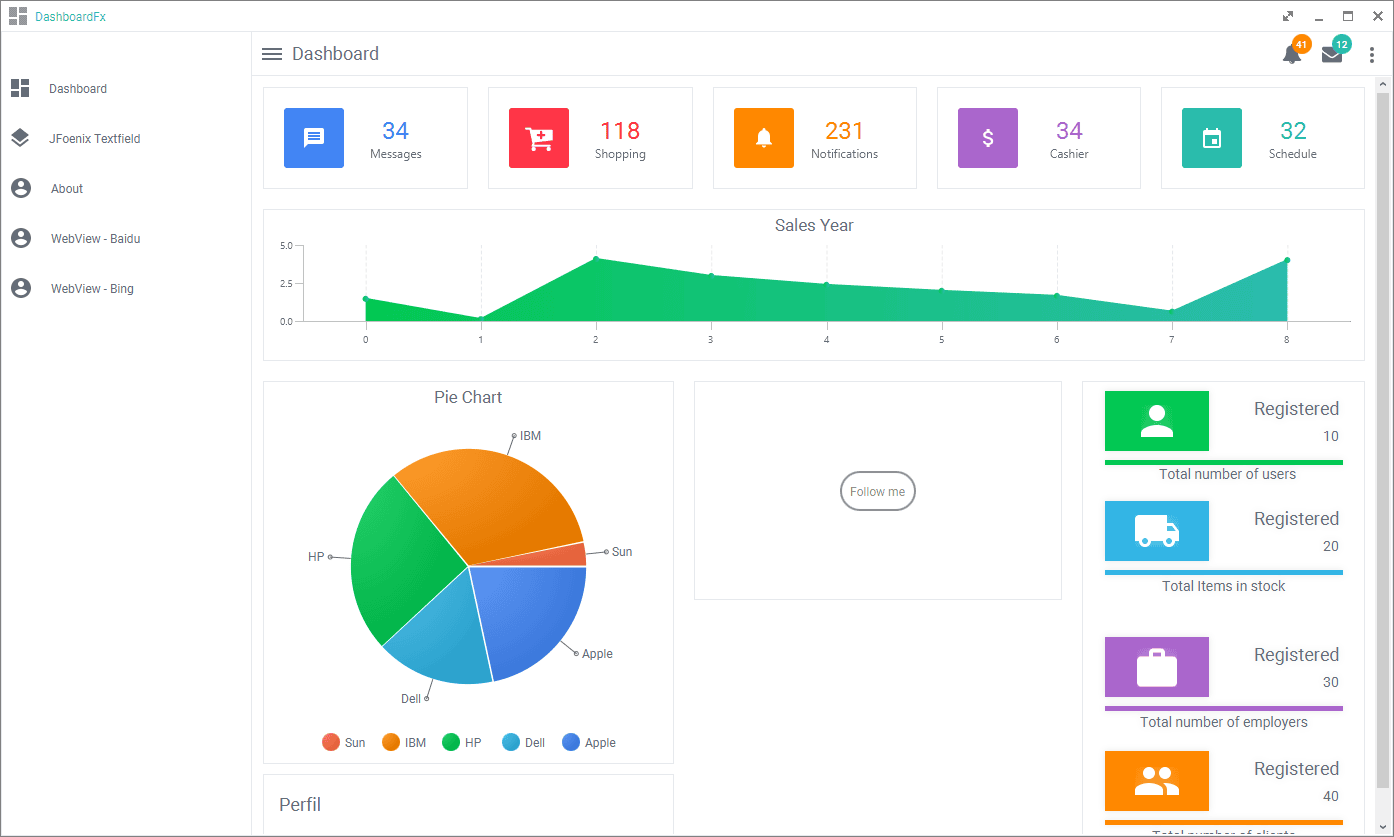

  • 和WEB一样风格的GUI

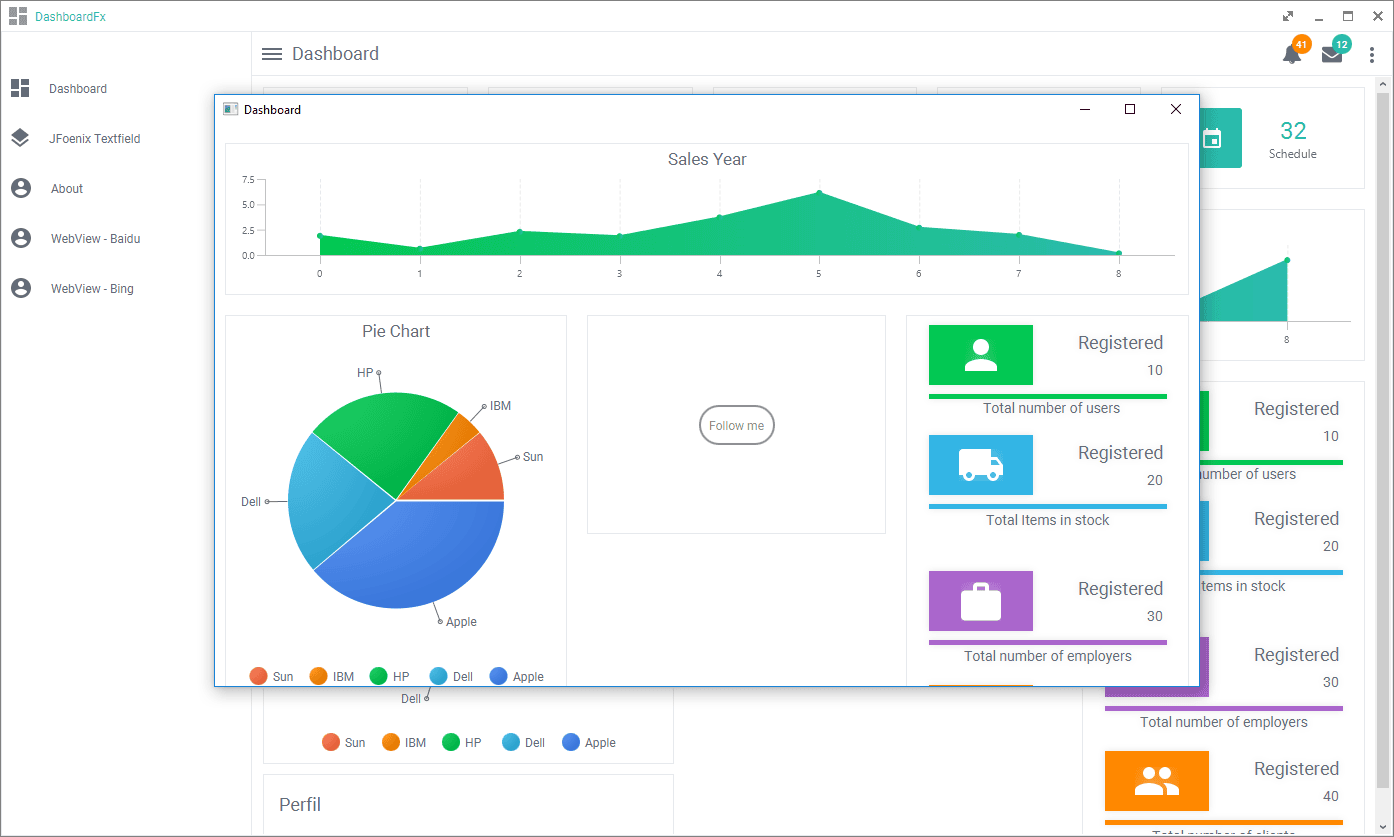

  • Popup

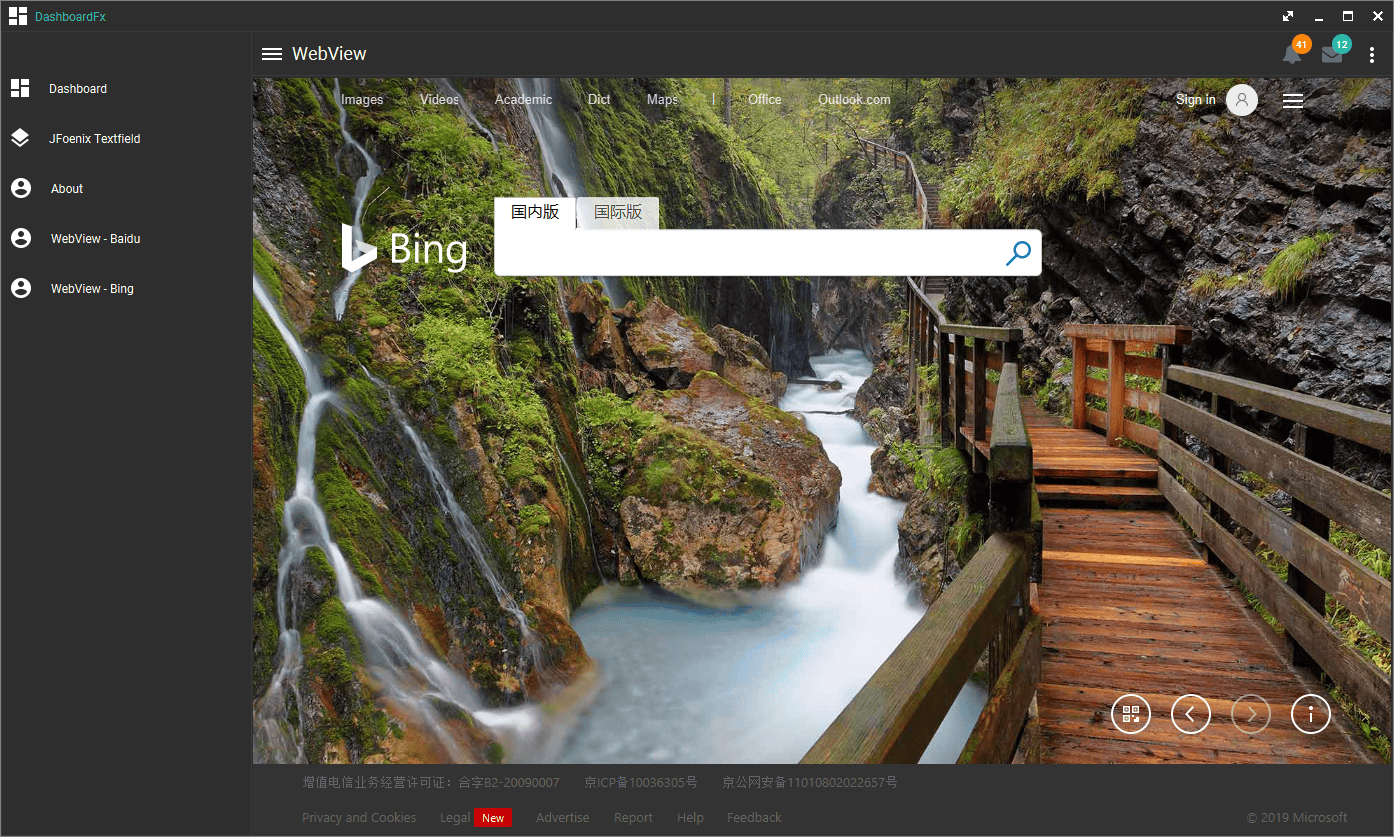

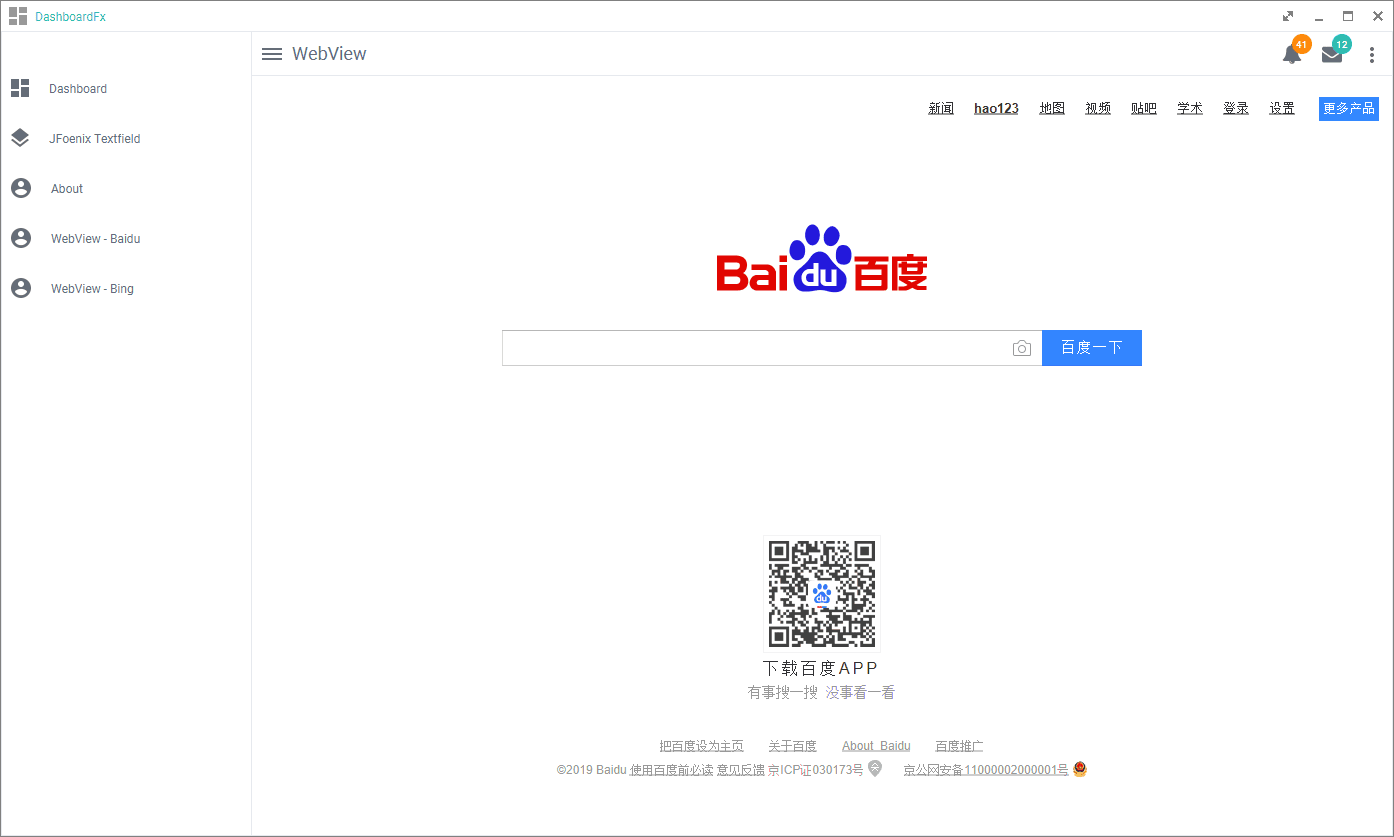

  • Webview

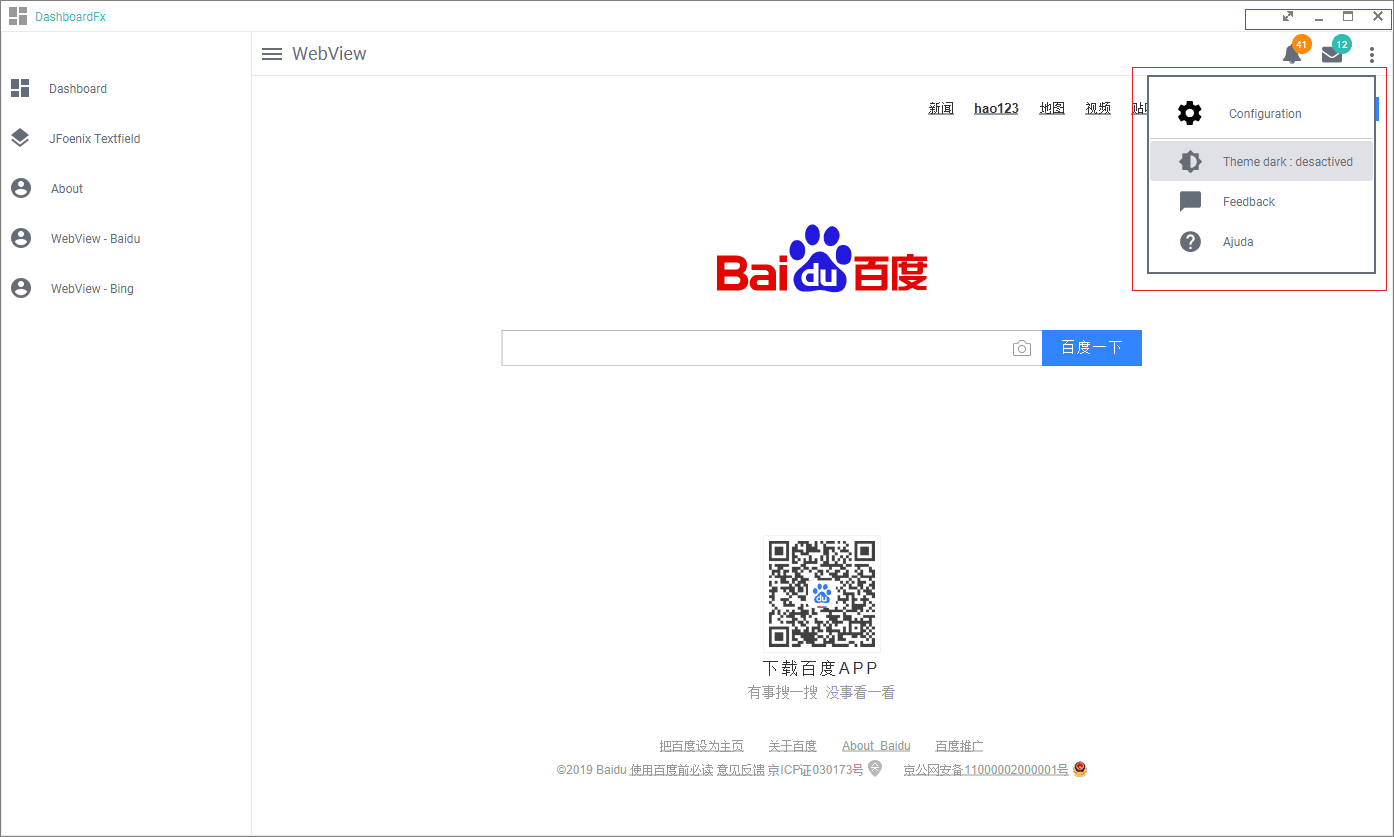

  • Theme
  • Message/Configuration...

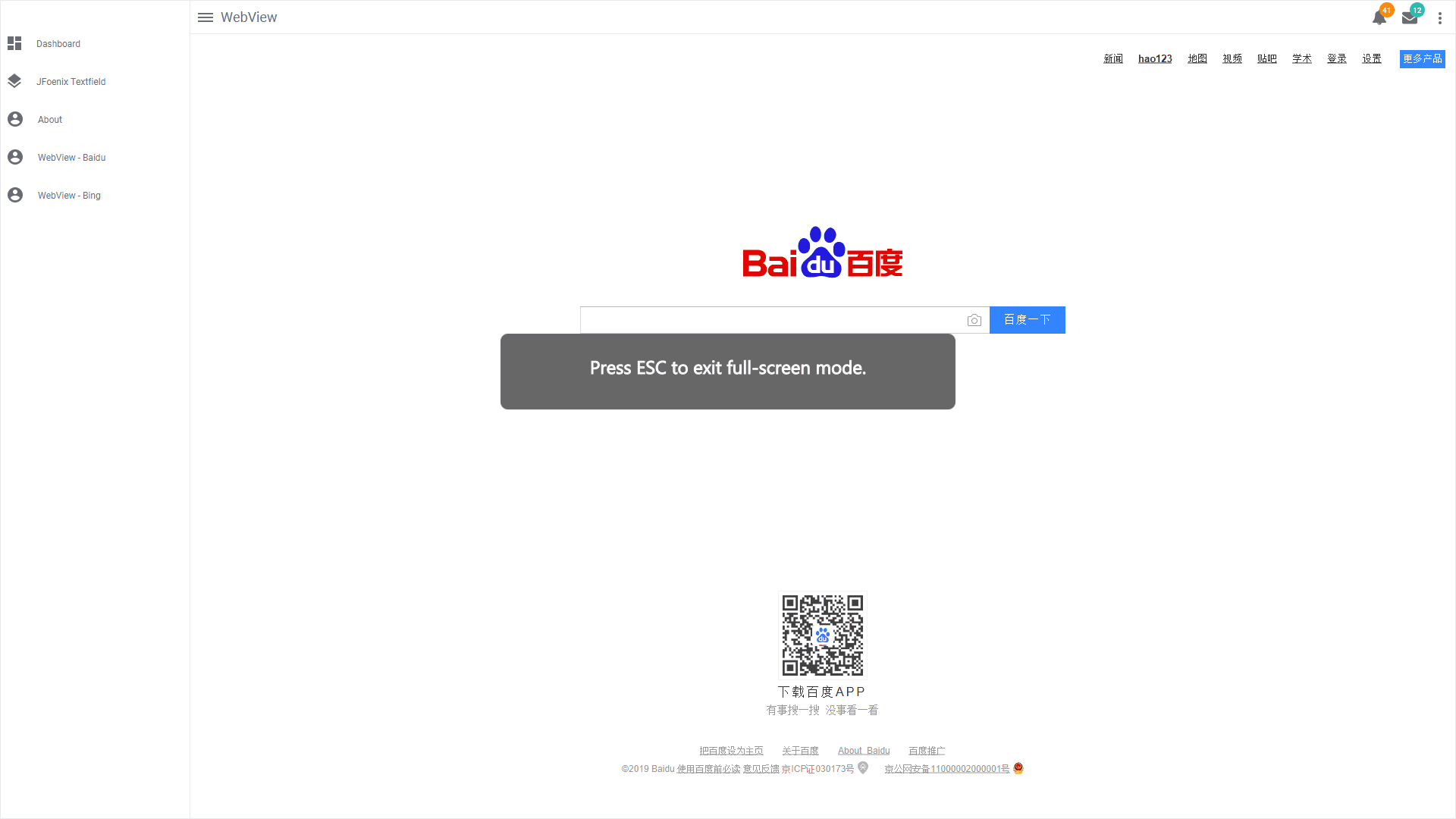

  • FullScreen/Max/Min/Close

包括全屏是基于JavaFX的一个组件，不是原生。


如何部署

收到几个开发问如何进行运行和部署，统一回复下：

  • 安装jar到本地的maven库

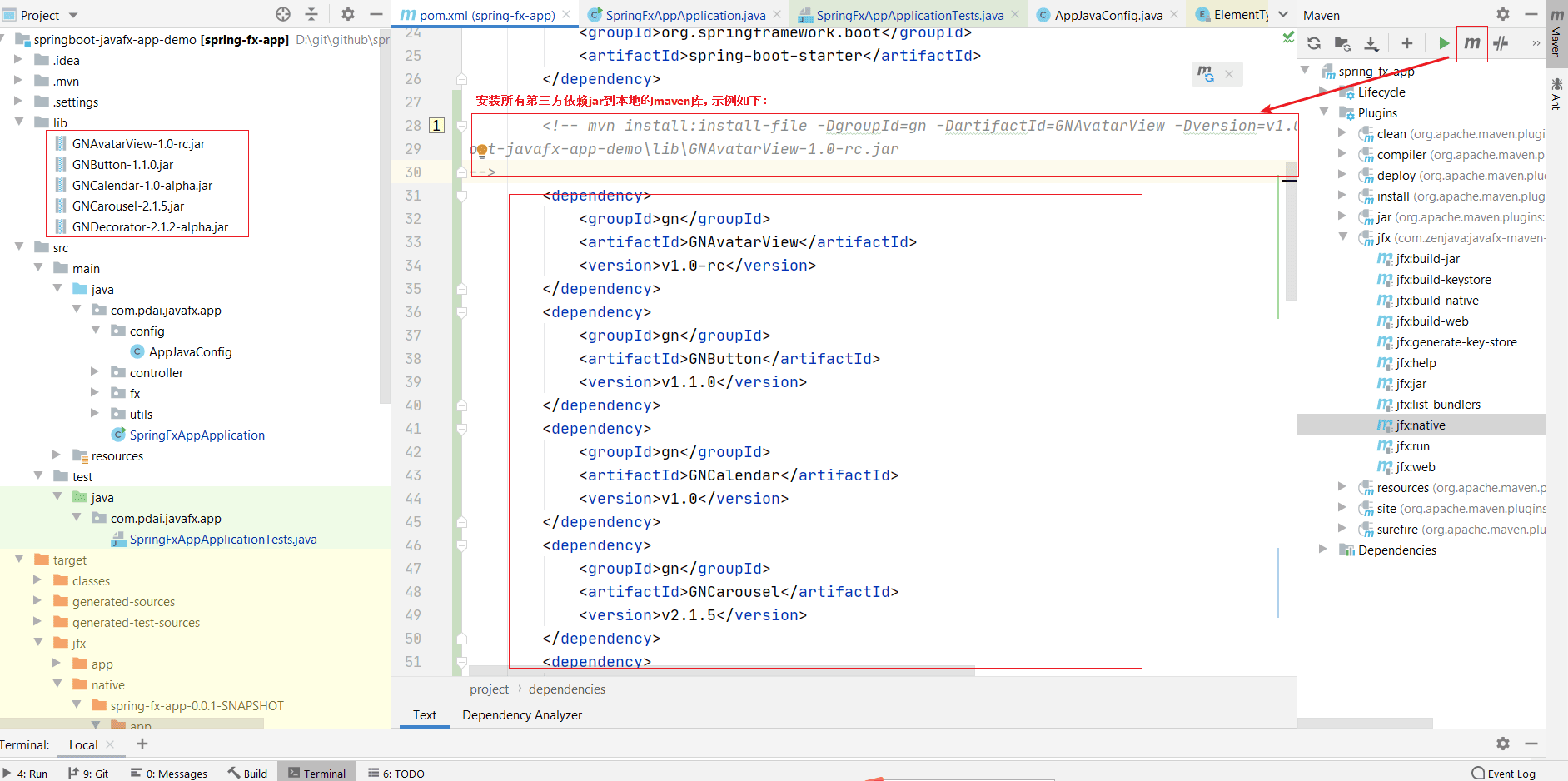

springboot-javafx-app-10.png 具体执行maven安装的脚本如下（这里D:\git\github\springboot-javafx-app-demo是我本地的项目目录，需要改成你自己的）：

    mvn install:install-file -DgroupId=gn -DartifactId=GNCalendar -Dversion=v1.0 -Dpackaging=jar -Dfile=D:\git\github\springboot-javafx-app-demo\lib\GNCalendar-1.0-alpha.jar

    mvn install:install-file -DgroupId=gn -DartifactId=GNButton -Dversion=v1.1.0 -Dpackaging=jar -Dfile=D:\git\github\springboot-javafx-app-demo\lib\GNButton-1.1.0.jar

    mvn install:install-file -DgroupId=gn -DartifactId=GNCarousel -Dversion=v2.1.5 -Dpackaging=jar -Dfile=D:\git\github\springboot-javafx-app-demo\lib\GNCarousel-2.1.5.jar

    mvn install:install-file -DgroupId=gn -DartifactId=GNDecorator -Dversion=v2.1.2-alpha -Dpackaging=jar -Dfile=D:\git\github\springboot-javafx-app-demo\lib\GNDecorator-2.1.2-alpha.jar

    mvn install:install-file -DgroupId=gn -DartifactId=GNAvatarView -Dversion=v1.0-rc -Dpackaging=jar -Dfile=D:\git\github\springboot-javafx-app-demo\lib\GNAvatarView-1.0-rc.jar

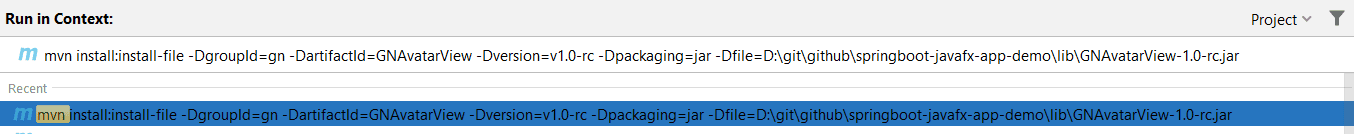

在这里执行：

  • 编译的maven插件
  • pom.xml如下
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
    	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>
    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>2.1.4.RELEASE</version>
    		<relativePath /> <!-- lookup parent from repository -->
    	</parent>
    	<groupId>com.example</groupId>
    	<artifactId>spring-fx-app</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<name>spring-fx-app</name>
    	<description>Demo project for Spring Boot</description>

    	<properties>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter</artifactId>
    		</dependency>

    		<!-- mvn install:install-file -DgroupId=gn -DartifactId=GNAvatarView -Dversion=v1.0-rc -Dpackaging=jar -Dfile=D:\git\github\springb
    oot-javafx-app-demo\lib\GNAvatarView-1.0-rc.jar
    -->
    		<dependency>
    			<groupId>gn</groupId>
    			<artifactId>GNAvatarView</artifactId>
    			<version>v1.0-rc</version>
    		</dependency>
    		<dependency>
    			<groupId>gn</groupId>
    			<artifactId>GNButton</artifactId>
    			<version>v1.1.0</version>
    		</dependency>
    		<dependency>
    			<groupId>gn</groupId>
    			<artifactId>GNCalendar</artifactId>
    			<version>v1.0</version>
    		</dependency>
    		<dependency>
    			<groupId>gn</groupId>
    			<artifactId>GNCarousel</artifactId>
    			<version>v2.1.5</version>
    		</dependency>
    		<dependency>
    			<groupId>gn</groupId>
    			<artifactId>GNDecorator</artifactId>
    			<version>v2.1.2-alpha</version>
    		</dependency>

    		<!-- https://mvnrepository.com/artifact/io.github.typhon0/AnimateFX -->
    		<dependency>
    			<groupId>io.github.typhon0</groupId>
    			<artifactId>AnimateFX</artifactId>
    			<version>1.2.1</version>
    		</dependency>
    		<!-- https://mvnrepository.com/artifact/org.controlsfx/controlsfx -->
    		<dependency>
    			<groupId>org.controlsfx</groupId>
    			<artifactId>controlsfx</artifactId>
    			<version>8.40.14</version>
    		</dependency>
    		<!-- https://mvnrepository.com/artifact/de.jensd/fontawesomefx -->
    		<dependency>
    			<groupId>de.jensd</groupId>
    			<artifactId>fontawesomefx</artifactId>
    			<version>8.9</version>
    		</dependency>
    		<!-- https://mvnrepository.com/artifact/com.jfoenix/jfoenix -->
    		<dependency>
    			<groupId>com.jfoenix</groupId>
    			<artifactId>jfoenix</artifactId>
    			<version>8.0.7</version>
    		</dependency>
    		<!-- https://mvnrepository.com/artifact/eu.hansolo/tilesfx -->
    		<dependency>
    			<groupId>eu.hansolo</groupId>
    			<artifactId>tilesfx</artifactId>
    			<version>1.6.5</version>
    		</dependency>
    		<!-- https://mvnrepository.com/artifact/eu.hansolo/colors -->
    		<dependency>
    			<groupId>eu.hansolo</groupId>
    			<artifactId>colors</artifactId>
    			<version>1.4</version>
    		</dependency>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-test</artifactId>
    			<scope>test</scope>
    		</dependency>
    	</dependencies>

    	<build>
    		<plugins>
    <!--			<plugin>-->
    <!--				<groupId>org.springframework.boot</groupId>-->
    <!--				<artifactId>spring-boot-maven-plugin</artifactId>-->
    <!--			</plugin>-->

    				<plugin>
    					<groupId>com.zenjava</groupId>
    					<artifactId>javafx-maven-plugin</artifactId>
    					<version>8.8.3</version>
    					<configuration>
    						<vendor>pdai</vendor>
    						<mainClass>com.pdai.javafx.app.SpringFxAppApplication</mainClass>
    						<allPermissions>true</allPermissions>
    					</configuration>
    				</plugin>
    		</plugins>
    	</build>

    </project>

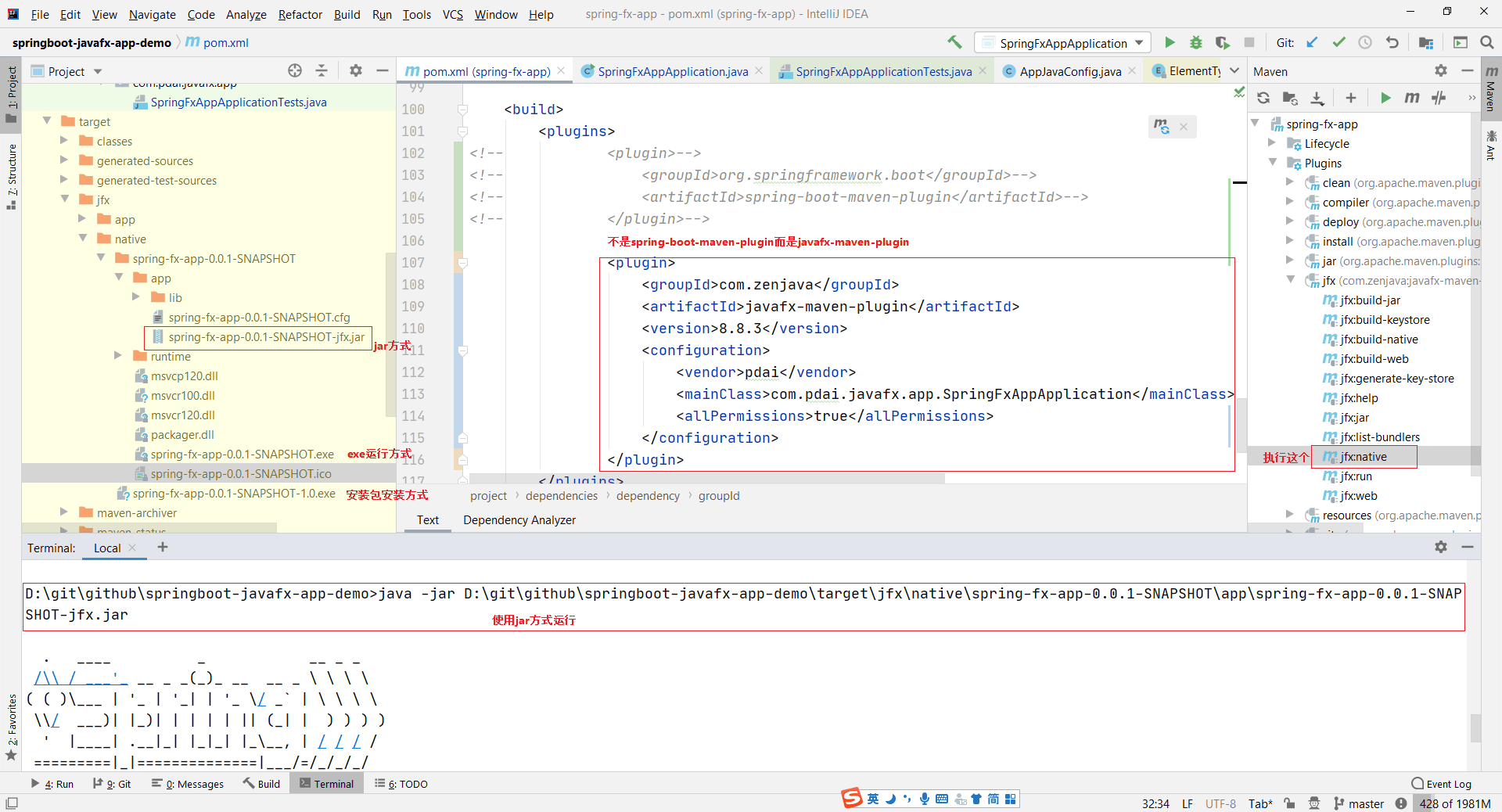

  • 以jar运行为例：
    D:\git\github\springboot-javafx-app-demo>java -jar D:\git\github\springboot-javafx-app-demo\target\jfx\native\spring-fx-app-0.0.1-SNAPSHOT\app\spring-fx-app-0.0.1-SNAPSHOT-jfx.jar

      .   ____          _            __ _ _
     /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \ ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
     \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
      '  |____| .__|_| |_|_| |_\__, | / / / /
     =========|_|==============|___/=/_/_/_/
     :: Spring Boot ::        (v2.1.4.RELEASE)

    2020-07-01 06:27:46.091  INFO 144952 --- [onPool-worker-1] o.s.boot.SpringApplication               : Starting application on pdai with PID 144952 (started by pdai in D:\git\github\springboot-javafx-app-demo)
    2020-07-01 06:27:46.099  INFO 144952 --- [onPool-worker-1] o.s.boot.SpringApplication               : No active profile set, falling back to default profiles: default
    2020-07-01 06:27:47.099  INFO 144952 --- [onPool-worker-1] o.s.boot.SpringApplication               : Started application in 1.784 seconds (JVM running for 2.838)
    2020-07-01 06:27:47.163  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:51.932  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:53.084  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:54.166  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:54.207  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:54.263  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:54.322  WARN 144952 --- [JavaFX-Launcher] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:56.569  WARN 144952 --- [lication Thread] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:56.590  WARN 144952 --- [lication Thread] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:56.694  WARN 144952 --- [lication Thread] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65
    2020-07-01 06:27:56.707  WARN 144952 --- [lication Thread] javafx                                   : Loading FXML document with JavaFX API of version 8.0.171 by JavaF
    X runtime of version 8.0.65

示例代码

@See https://github.com/realpdai/springboot-javafx-app-demo
