Tomcat - 线程池的设计与实现：StandardThreadExecutor

上文中我们研究了下Service的设计和实现，StandardService中包含Executor的调用；这个比较好理解，Tomcat需要并发处理用户的请求，自然而言就想到线程池，那么Tomcat中线程池（Executor）具体是如何实现的？本文带你继续深度解析。@pdai

Tomcat - 线程池的设计与实现：StandardThreadExecutor
理解思路
准备知识
Executor接口设计
StandardThreadExecutor的实现
理解相关配置参数
Lifecycle模板方法
核心executor方法
动态调整线程池
补充TaskQueue
为什么不是直接使用ThreadPoolExecutor

理解思路

我们如下几个方面开始引入线程池的，这里主要从上文Service引入，保持上下文之间的衔接，会很好的构筑你的知识体系。@pdai

上文中我们了解到，Executor是包含在Service中的，Service中关于Executor的配置和相关代码如下：

server.xml中service里包含Executor的配置

    <Service name="Catalina">
    <!-- 1. 属性说明 name:Service的名称 -->

        <!--2. 一个或多个excecutors --> // 看这里
        <!-- <Executor name="tomcatThreadPool" namePrefix="catalina-exec-" maxThreads="150" minSpareThreads="4"/> -->
    </Service>

Service中executors相关方法

    /** * Adds a named executor to the service * @param ex Executor */
    @Override
    public void addExecutor(Executor ex) {
        synchronized (executors) {
            if (!executors.contains(ex)) {
                executors.add(ex);
                if (getState().isAvailable()) {
                    try {
                        ex.start(); // 启动
                    } catch (LifecycleException x) {
                        log.error(sm.getString("standardService.executor.start"), x);
                    }
                }
            }
        }
    }

    /** * Retrieves all executors * @return Executor[] */
    @Override
    public Executor[] findExecutors() {
        synchronized (executors) {
            Executor[] arr = new Executor[executors.size()];
            executors.toArray(arr);
            return arr;
        }
    }


    /** * Retrieves executor by name, null if not found * @param executorName String * @return Executor */
    @Override
    public Executor getExecutor(String executorName) {
        synchronized (executors) {
            for (Executor executor: executors) {
                if (executorName.equals(executor.getName()))
                    return executor;
            }
        }
        return null;
    }

    /** * Removes an executor from the service * @param ex Executor */
    @Override
    public void removeExecutor(Executor ex) {
        synchronized (executors) {
            if ( executors.remove(ex) && getState().isAvailable() ) {
                try {
                    ex.stop(); // 停止
                } catch (LifecycleException e) {
                    log.error(sm.getString("standardService.executor.stop"), e);
                }
            }
        }
    }

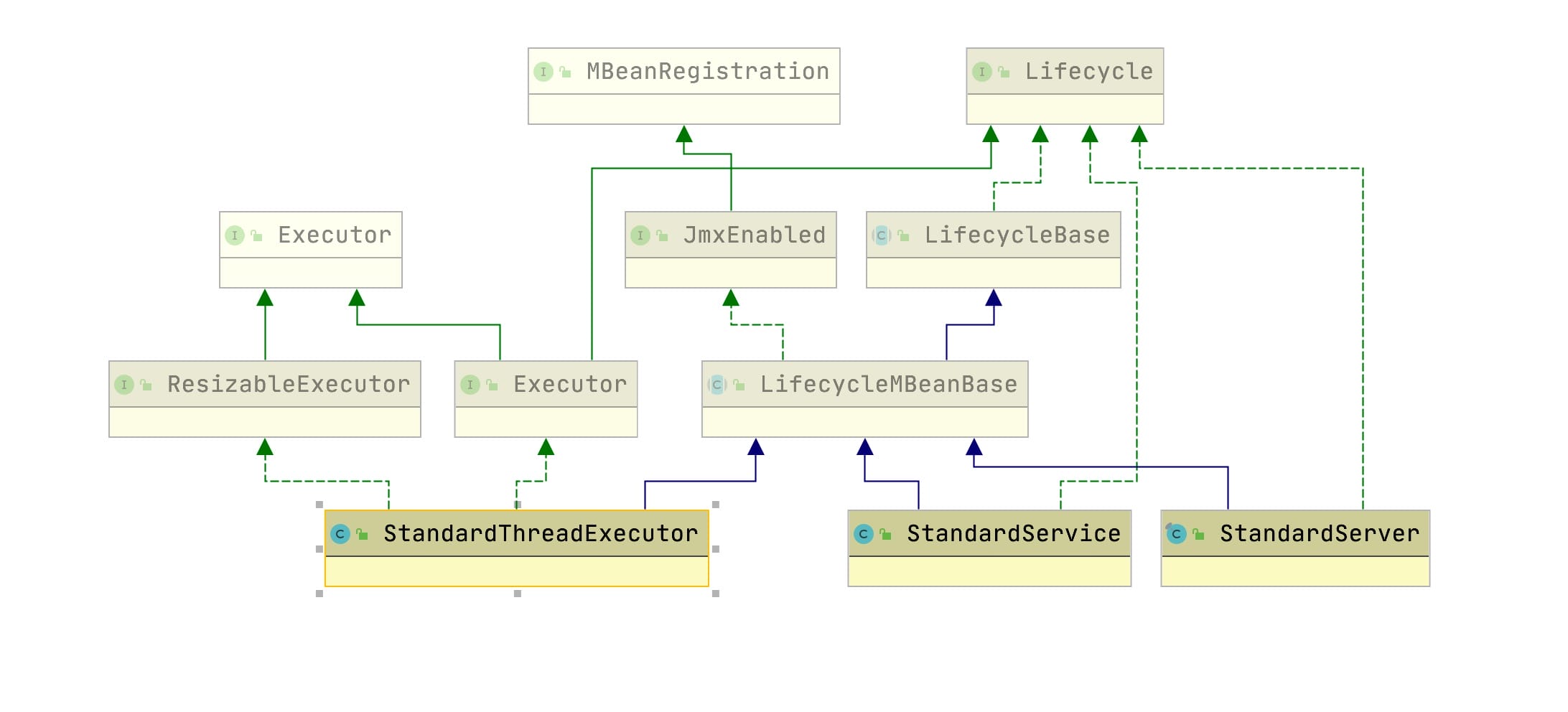

和Server、Service实现一样，StandardThreadExecutor也是继承LifecycleMBeanBase；然后实现Executor的接口。

Tomcat关于Executor相关的配置文档

http://tomcat.apache.org/tomcat-9.0-doc/config/executor.html

准备知识

在理解Tomcat的线程池时，需要有一定的基础，这里推荐学习下JDK关于线程池的设计和实现。

并发基础

Java 并发 - 理论基础
多线程的出现是要解决什么问题的?
线程不安全是指什么? 举例说明
并发出现线程不安全的本质什么? 可见性，原子性和有序性。
Java是怎么解决并发问题的? 3个关键字，JMM和8个Happens-Before
线程安全是不是非真即假? 不是
线程安全有哪些实现思路?
如何理解并发和并行的区别?
Java 并发 - 线程基础
线程有哪几种状态? 分别说明从一种状态到另一种状态转变有哪些方式?
通常线程有哪几种使用方式?
基础线程机制有哪些?
线程的中断方式有哪些?
线程的互斥同步方式有哪些? 如何比较和选择?
线程之间有哪些协作方式?

JUC BlockingQueue 和 ThreadPoolExecutor

JUC集合: BlockingQueue详解
什么是BlockingDeque?
BlockingQueue大家族有哪些? ArrayBlockingQueue, DelayQueue, LinkedBlockingQueue, SynchronousQueue...
BlockingQueue适合用在什么样的场景?
BlockingQueue常用的方法?
BlockingQueue插入方法有哪些? 这些方法(add(o),offer(o),put(o),offer(o, timeout, timeunit))的区别是什么?
BlockingDeque 与BlockingQueue有何关系，请对比下它们的方法?
BlockingDeque适合用在什么样的场景?
BlockingDeque大家族有哪些?
BlockingDeque 与BlockingQueue实现例子?
JUC线程池: ThreadPoolExecutor详解
为什么要有线程池?
Java是实现和管理线程池有哪些方式? 请简单举例如何使用。
为什么很多公司不允许使用Executors去创建线程池? 那么推荐怎么使用呢?
ThreadPoolExecutor有哪些核心的配置参数? 请简要说明
ThreadPoolExecutor可以创建哪是哪三种线程池呢?
当队列满了并且worker的数量达到maxSize的时候，会怎么样?
说说ThreadPoolExecutor有哪些RejectedExecutionHandler策略? 默认是什么策略?
简要说下线程池的任务执行机制? execute –> addWorker –>runworker (getTask)
线程池中任务是如何提交的?
线程池中任务是如何关闭的?
在配置线程池的时候需要考虑哪些配置因素?
如何监控线程池的状态?

Executor接口设计

Executor的设计很简单，在理解的时候需要理解两点：

1.Tomcat希望将Executor也纳入Lifecycle生命周期管理，所以让它实现了Lifecycle接口
2.引入超时机制：也就是说当work queue满时，会等待指定的时间，如果超时将抛出RejectedExecutionException，所以这里增加了一个void execute(Runnable command, long timeout, TimeUnit unit)方法; 其实本质上，它构造了JUC中ThreadPoolExecutor，通过它调用ThreadPoolExecutor的void execute(Runnable command, long timeout, TimeUnit unit)方法。

    public interface Executor extends java.util.concurrent.Executor, Lifecycle {

        public String getName();

        /** * Executes the given command at some time in the future. The command * may execute in a new thread, in a pooled thread, or in the calling * thread, at the discretion of the <code>Executor</code> implementation. * If no threads are available, it will be added to the work queue. * If the work queue is full, the system will wait for the specified * time until it throws a RejectedExecutionException * * @param command the runnable task * @param timeout the length of time to wait for the task to complete * @param unit the units in which timeout is expressed * * @throws java.util.concurrent.RejectedExecutionException if this task * cannot be accepted for execution - the queue is full * @throws NullPointerException if command or unit is null */
        void execute(Runnable command, long timeout, TimeUnit unit);
    }

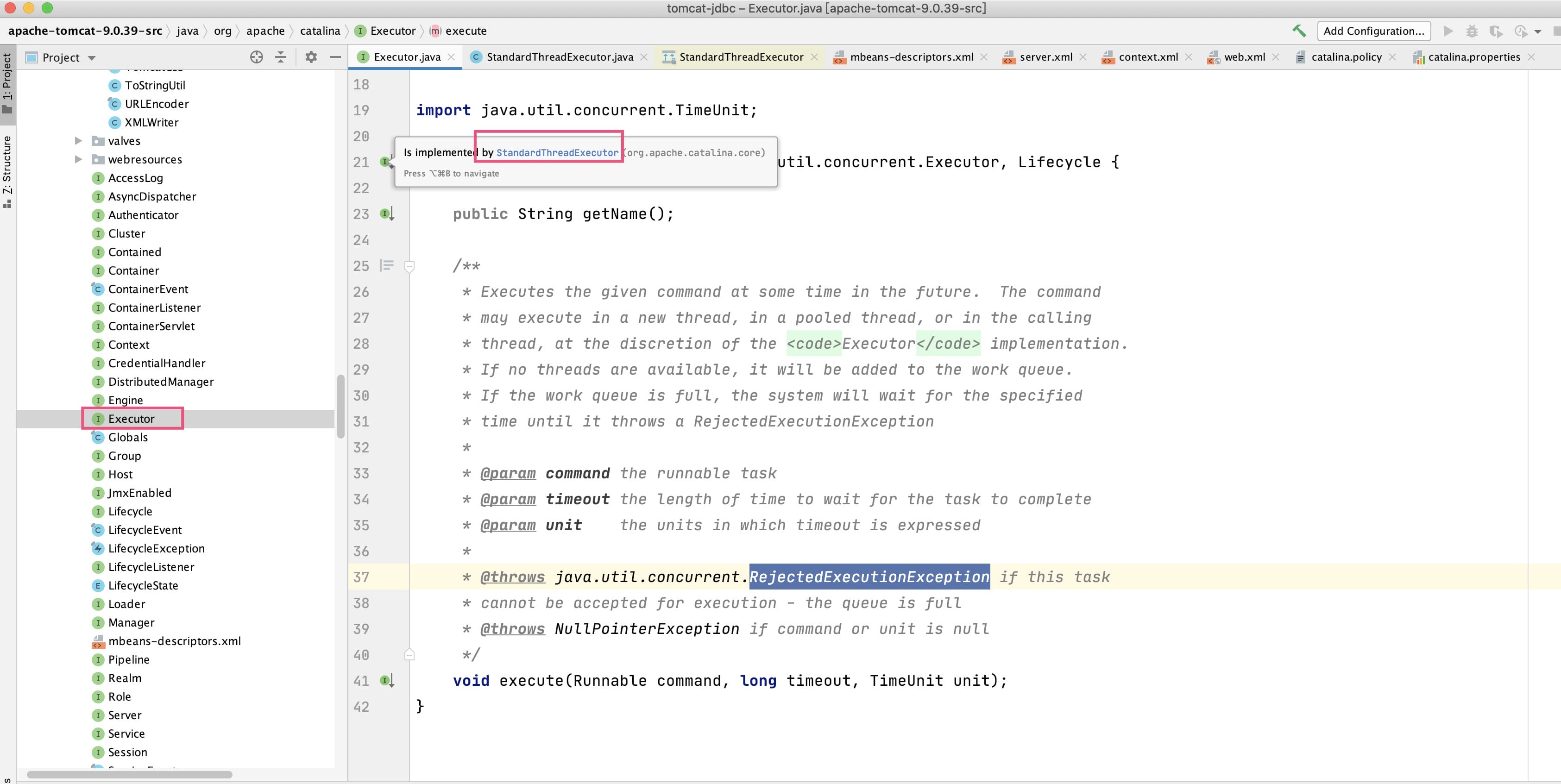

找到Executor的实现类

StandardThreadExecutor的实现

接下来我们看下具体的实现类StandardThreadExecutor。

公共属性

Executor的所有实现都支持以下属性：

属性描述className实现的类。实现必须实现 org.apache.catalina.Executor接口。此接口确保可以通过其name属性引用对象并实现Lifecycle，以便可以使用容器启动和停止对象。className的默认值是org.apache.catalina.core.StandardThreadExecutorname用于在server.xml中的其他位置引用此池的名称。该名称是必需的，必须是唯一的。* StandardThreadExecutor属性

默认实现支持以下属性：

属性描述threadPriority（int）执行程序中线程的线程优先级，默认为 5（Thread.NORM_PRIORITY常量的值）daemon（boolean）线程是否应该是守护程序线程，默认为 truenamePrefix（字符串）执行程序创建的每个线程的名称前缀。单个线程的线程名称将是namePrefix+threadNumbermaxThreads（int）此池中活动线程的最大数量，默认为 200minSpareThreads（int）最小线程数（空闲和活动）始终保持活动状态，默认为 25maxIdleTime（int）空闲线程关闭之前的毫秒数，除非活动线程数小于或等于minSpareThreads。默认值为60000（1分钟）maxQueueSize（int）在我们拒绝之前可以排队等待执行的可运行任务的最大数量。默认值是Integer.MAX_VALUEprestartminSpareThreads（boolean）是否应该在启动Executor时启动minSpareThreads，默认值为 falsethreadRenewalDelay（long）如果配置了ThreadLocalLeakPreventionListener，它将通知此执行程序有关已停止的上下文。上下文停止后，池中的线程将被更新。为避免同时更新所有线程，此选项在任意2个线程的续订之间设置延迟。该值以ms为单位，默认值为1000ms。如果值为负，则不会续订线程。

Lifecycle模板方法

先看核心变量：

    // 任务队列
    private TaskQueue taskqueue = null;

    // 包装了一个ThreadPoolExecutor
    protected ThreadPoolExecutor executor = null;

initInternal和destroyInternal默认父类实现

    @Override
    protected void initInternal() throws LifecycleException {
        super.initInternal();
    }
    @Override
    protected void destroyInternal() throws LifecycleException {
        super.destroyInternal();
    }

startInternal方法

这个方法中，我们不难看出，就是初始化taskqueue，同时构造ThreadPoolExecutor的实例，后面Tomcat的StandardThreadExecutor的实现本质上通过ThreadPoolExecutor实现的。

    /** * Start the component and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#startInternal()}. * * @exception LifecycleException if this component detects a fatal error * that prevents this component from being used */
    @Override
    protected void startInternal() throws LifecycleException {

        taskqueue = new TaskQueue(maxQueueSize);
        TaskThreadFactory tf = new TaskThreadFactory(namePrefix,daemon,getThreadPriority());
        executor = new ThreadPoolExecutor(getMinSpareThreads(), getMaxThreads(), maxIdleTime, TimeUnit.MILLISECONDS,taskqueue, tf);
        executor.setThreadRenewalDelay(threadRenewalDelay);
        if (prestartminSpareThreads) {
            executor.prestartAllCoreThreads();
        }
        taskqueue.setParent(executor);

        setState(LifecycleState.STARTING);
    }

stopInternal方法

代码很简单，关闭线程池后置null, 方便GC回收。

    /** * Stop the component and implement the requirements * of {@link org.apache.catalina.util.LifecycleBase#stopInternal()}. * * @exception LifecycleException if this component detects a fatal error * that needs to be reported */
    @Override
    protected void stopInternal() throws LifecycleException {

        setState(LifecycleState.STOPPING);
        if (executor != null) {
            executor.shutdownNow();
        }
        executor = null;
        taskqueue = null;
    }

核心executor方法

本质上就是调用ThreadPoolExecutor的实例的相关方法。

    @Override
    public void execute(Runnable command, long timeout, TimeUnit unit) {
        if (executor != null) {
            executor.execute(command,timeout,unit);
        } else {
            throw new IllegalStateException(sm.getString("standardThreadExecutor.notStarted"));
        }
    }


    @Override
    public void execute(Runnable command) {
        if (executor != null) {
            try {
                executor.execute(command);
            } catch (RejectedExecutionException rx) {
                //there could have been contention around the queue
                if (!((TaskQueue) executor.getQueue()).force(command)) {
                    throw new RejectedExecutionException(sm.getString("standardThreadExecutor.queueFull"));
                }
            }
        } else {
            throw new IllegalStateException(sm.getString("standardThreadExecutor.notStarted"));
        }
    }

动态调整线程池

我们还注意到StandardThreadExecutor还实现了ResizeableExecutor，从名称上我们就可知道它是希望实现对线程池的动态调整，所以呢，它封装了一个ResizeableExecutor的接口，看下接口。

    public interface ResizableExecutor extends Executor {

        /** * Returns the current number of threads in the pool. * * @return the number of threads */
        public int getPoolSize();

        public int getMaxThreads();

        /** * Returns the approximate number of threads that are actively executing * tasks. * * @return the number of threads */
        public int getActiveCount();

        public boolean resizePool(int corePoolSize, int maximumPoolSize);

        public boolean resizeQueue(int capacity);

    }

前三个方法比较简单，我们看下后两个方法是如何实现的, 其实也很简单。

    @Override
    public boolean resizePool(int corePoolSize, int maximumPoolSize) {
        if (executor == null)
            return false;

        executor.setCorePoolSize(corePoolSize);
        executor.setMaximumPoolSize(maximumPoolSize);
        return true;
    }

    // 默认没有实现
    @Override
    public boolean resizeQueue(int capacity) {
        return false;
    }

补充TaskQueue

我们知道工作队列是有TaskQueue保障的，它集成自LinkedBlockingQueue（一个阻塞的链表队列），来看下源代码吧。

    /** * As task queue specifically designed to run with a thread pool executor. The * task queue is optimised to properly utilize threads within a thread pool * executor. If you use a normal queue, the executor will spawn threads when * there are idle threads and you wont be able to force items onto the queue * itself. */
    public class TaskQueue extends LinkedBlockingQueue<Runnable> {

        private static final long serialVersionUID = 1L;
        protected static final StringManager sm = StringManager
                .getManager("org.apache.tomcat.util.threads.res");
        private static final int DEFAULT_FORCED_REMAINING_CAPACITY = -1;

        private transient volatile ThreadPoolExecutor parent = null;

        // No need to be volatile. This is written and read in a single thread
        // (when stopping a context and firing the listeners)
        private int forcedRemainingCapacity = -1;

        public TaskQueue() {
            super();
        }

        public TaskQueue(int capacity) {
            super(capacity);
        }

        public TaskQueue(Collection<? extends Runnable> c) {
            super(c);
        }

        public void setParent(ThreadPoolExecutor tp) {
            parent = tp;
        }

        public boolean force(Runnable o) {
            if (parent == null || parent.isShutdown()) throw new RejectedExecutionException(sm.getString("taskQueue.notRunning"));
            return super.offer(o); //forces the item onto the queue, to be used if the task is rejected
        }

        public boolean force(Runnable o, long timeout, TimeUnit unit) throws InterruptedException {
            if (parent == null || parent.isShutdown()) throw new RejectedExecutionException(sm.getString("taskQueue.notRunning"));
            return super.offer(o,timeout,unit); //forces the item onto the queue, to be used if the task is rejected
        }

        @Override
        public boolean offer(Runnable o) {
          //we can't do any checks
            if (parent==null) return super.offer(o);
            //we are maxed out on threads, simply queue the object
            if (parent.getPoolSize() == parent.getMaximumPoolSize()) return super.offer(o);
            //we have idle threads, just add it to the queue
            if (parent.getSubmittedCount()<=(parent.getPoolSize())) return super.offer(o);
            //if we have less threads than maximum force creation of a new thread
            if (parent.getPoolSize()<parent.getMaximumPoolSize()) return false;
            //if we reached here, we need to add it to the queue
            return super.offer(o);
        }


        @Override
        public Runnable poll(long timeout, TimeUnit unit)
                throws InterruptedException {
            Runnable runnable = super.poll(timeout, unit);
            if (runnable == null && parent != null) {
                // the poll timed out, it gives an opportunity to stop the current
                // thread if needed to avoid memory leaks.
                parent.stopCurrentThreadIfNeeded();
            }
            return runnable;
        }

        @Override
        public Runnable take() throws InterruptedException {
            if (parent != null && parent.currentThreadShouldBeStopped()) {
                return poll(parent.getKeepAliveTime(TimeUnit.MILLISECONDS),
                        TimeUnit.MILLISECONDS);
                // yes, this may return null (in case of timeout) which normally
                // does not occur with take()
                // but the ThreadPoolExecutor implementation allows this
            }
            return super.take();
        }

        @Override
        public int remainingCapacity() {
            if (forcedRemainingCapacity > DEFAULT_FORCED_REMAINING_CAPACITY) {
                // ThreadPoolExecutor.setCorePoolSize checks that
                // remainingCapacity==0 to allow to interrupt idle threads
                // I don't see why, but this hack allows to conform to this
                // "requirement"
                return forcedRemainingCapacity;
            }
            return super.remainingCapacity();
        }

        public void setForcedRemainingCapacity(int forcedRemainingCapacity) {
            this.forcedRemainingCapacity = forcedRemainingCapacity;
        }

        void resetForcedRemainingCapacity() {
            this.forcedRemainingCapacity = DEFAULT_FORCED_REMAINING_CAPACITY;
        }

    }

TaskQueue这个任务队列是专门为线程池而设计的。优化任务队列以适当地利用线程池执行器内的线程。

如果你使用一个普通的队列，当有空闲线程executor将产生线程并且你不能强制将任务添加到队列。

为什么不是直接使用ThreadPoolExecutor

这里你是否考虑过一个问题，为什么Tomcat会自己构造一个StandardThreadExecutor而不是直接使用ThreadPoolExecutor？

从上面的代码，你会发现这里只是使用executor只是使用了execute的两个主要方法，它希望让调用层屏蔽掉ThreadPoolExecutor的其它方法：

它体现的原则：最少知识原则: 只和你的密友谈话。也就是说客户对象所需要交互的对象应当尽可能少
它体现的设计模式：结构型 - 外观(Facade)
外观模式(Facade pattern)，它提供了一个统一的接口，用来访问子系统中的一群接口，从而让子系统更容易使用
